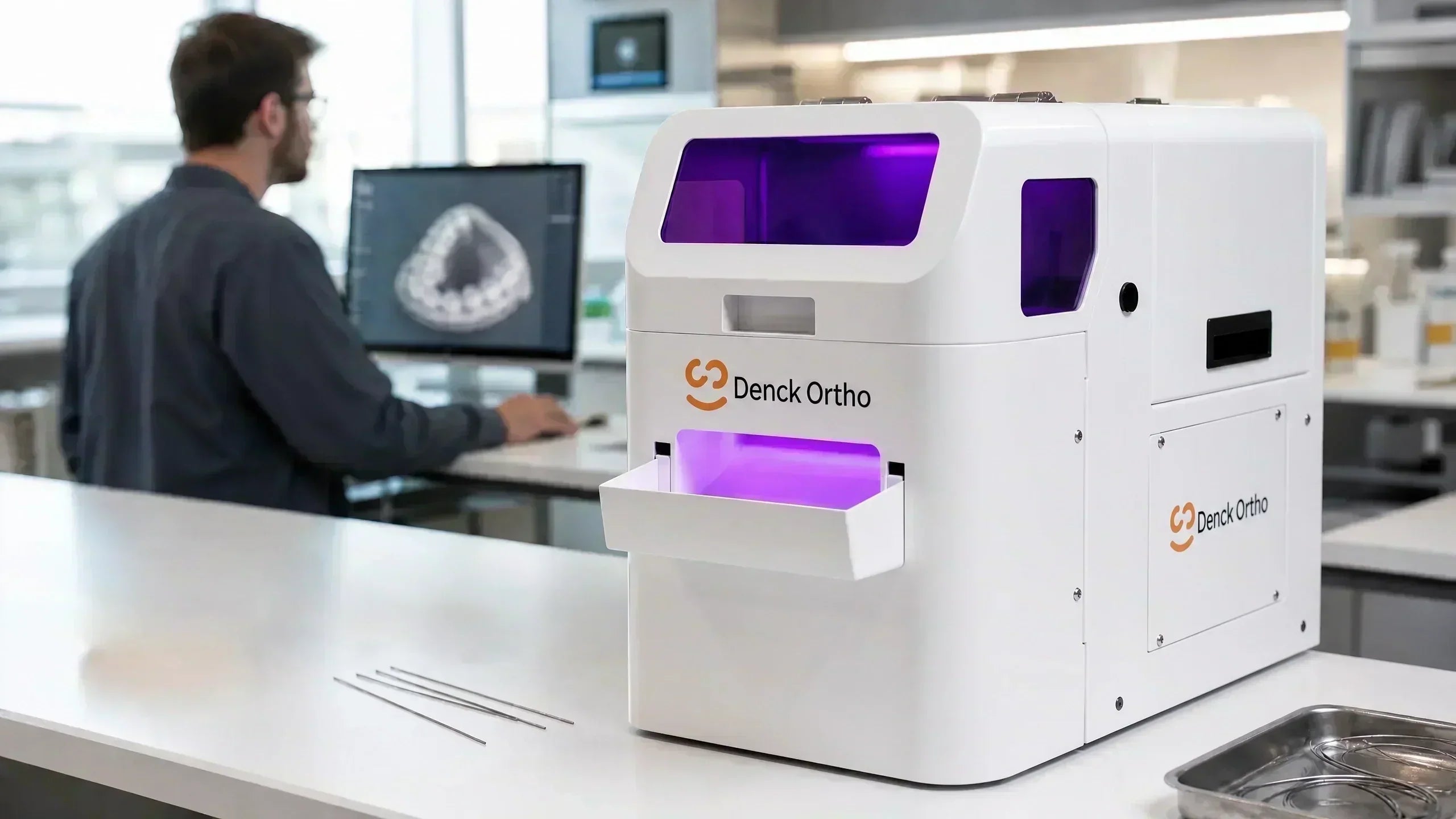

DenckOrtho Wire Bender S from 3DNA Dental Versus Manual Orthodontic Wire Bending: A Practical Deep Dive for Dental Labs
Manual wire bending is one of those dental-laboratory processes in which craft and constraint are inseparable. A skilled orthodontic technician can read a model, select the right plier, account for material behavior, and build retention or activation into a compact geometry. The same dependence on individual skill, however, can make the process difficult to scale. Each appliance consumes active bench time, and consistency can change with case complexity, operator technique, or fatigue.
The DenckOrtho Wire Bender S, distributed in the United States by 3DNA Dental, proposes a different allocation of work. Digital scans and AI-assisted design define the geometry; a compact robotic system bends and cuts the wire; technicians review, verify, finish, and handle exceptions. 3DNA Dental positions the system for chairside use and small-to-mid-size orthodontic laboratories, with a listed machine price of $20,999 and separate Wire Bender S software listed at $1,500 per year.
The central question is therefore not simply, “Can a robot bend wire?” The more useful question is:
Which parts of orthodontic wire fabrication should be standardized, and which parts still require human judgment?
The Short Answer
For laboratories with reliable STL inputs, repeatable appliance families, sufficient eligible case volume, and a disciplined quality-control process, the Wire Bender S may create a meaningful capacity and standardization opportunity. Manual bending remains valuable for immediate chairside adjustments, highly unusual geometries, low-volume production, unsupported materials or gauges, and business-continuity coverage.
Automation does not eliminate expertise. It moves expertise upstream and downstream—toward scan quality, digital design review, material selection, machine validation, finishing, model verification, and clinical fit assessment.
|
Decision factor
|
Manual wire bending
|
DenckOrtho Wire Bender S
|
|
Primary input
|
Physical model, prescription, template, and technician experience
|
STL-based digital model and software-generated or adjusted wire path
|
|
Geometric execution
|
Technician manipulates wire with pliers and gauges
|
Programmed dual-head bending with integrated cutting
|
|
Active skill emphasis
|
Hand dexterity, material feel, bend sequencing, and case-specific judgment
|
Digital review, machine operation, validation, finishing, and exception handling
|
|
Manufacturer-stated bending time
|
15–30 minutes per appliance
|
3–5 minutes per appliance
|
|
Repeatability
|
Operator- and case-dependent
|
Designed for programmed, repeatable motion; exact performance is not independently validated for this model
|
|
Best fit
|
Low volume, unusual cases, immediate adjustments, unsupported configurations
|
Repeatable appliance families and sufficient volume within a mature digital workflow
|
|
Quality control
|
Continuous during hand fabrication and final fit check
|
Input review, bend verification, finishing, model fit, and clinical fit remain necessary
|
Time figures in this table are 3DNA Dental’s comparison claims, not independent benchmark results or total end-to-end turnaround times.
Why manual wire bending is difficult to scale
Manual orthodontic wire bending is not a single motion. It is a chain of judgment-intensive steps: interpret the prescription, select the wire, plan the bend sequence, choose pliers, place first-, second-, or third-order bends, compensate for springback, compare the wire against the model, refine the fit, cut and finish the ends, and inspect the completed assembly.
The scientific literature describes the underlying challenge clearly. Orthodontic wires can be stiff, elastic, or superelastic; repeated manipulations can introduce fatigue; and the result depends heavily on the operator’s training and execution. A 2024 review of robotic archwire bending characterized manual bending as time-consuming and susceptible to human error, while also noting that robot accuracy depends on control algorithms, springback compensation, and the physical properties of the selected wire.
The American Dental Association describes dental laboratory technology as both science and art. Technicians work with stainless steel and other alloys, use sophisticated instruments, and create custom orthodontic appliances from detailed instructions. It also notes that Certified Dental Technicians may specialize in orthodontics and maintain competence through continuing education. This is important context: automation is entering a skilled profession, not replacing an unskilled task.
Manual bending is especially resilient when the technician needs to improvise. A one-off clasp, an urgent adjustment, or a small chairside correction may be faster with pliers than with a new scan-and-design cycle. Manual capability also provides a fallback when a machine, computer, software license, networked workflow, or compressed-air supply is unavailable.
What the Wire Bender S actually changes
The Wire Bender S links digital geometry to robotic execution. According to 3DNA Dental, its workflow accepts standard STL files, uses software to recognize tooth positions and gingival boundaries, generates a wire path, and sends the design to dual bending heads. The machine also includes automated cutting.
The detailed product page lists 14-inch straight wire, 0.7, 0.8, and 0.9 mm diameters, AC 100–240 V input, DC 24 V operating voltage, and a machine weight of 60 kg (132.3 lb). It lists X- and Z-axis displacement accuracy of 0.001 mm, a bending speed limit of 10.90 degrees per second, and a listed bending resolution or accuracy of 0.028 degrees.
The software page adds several workflow details: approximately 10-second AI design generation, automatic wire-diameter recognition, automatic bending-profile selection, onboard camera calibration and angle correction, USB connectivity, wire-material tracking, a digital acrylic-boundary tool, and a modular, user-replaceable bending head. The software still permits manual fine-tuning before the design is sent to the robot.
“AI auto-generation → manual fine-tune → robotic bending.” — 3DNA Dental’s stated software workflow.
The software page adds several workflow details: approximately 10-second AI design generation, automatic wire-diameter recognition, automatic bending-profile selection, onboard camera calibration and angle correction, USB connectivity, wire-material tracking, a digital acrylic-boundary tool, and a modular, user-replaceable bending head. The software still permits manual fine-tuning before the design is sent to the robot.
“AI auto-generation → manual fine-tune → robotic bending.” — 3DNA Dental’s stated software workflow.
The bending area of the Wire Bender S. Product image source: 3DNA Dental.
Specifications that matter in a real lab
|
Specification
|
Published information
|
Practical implication
|
|
Machine price
|
$20,999
|
Capital approval should be based on eligible case volume and recoverable technician time, not headline cycle time alone.
|
|
Software
|
$1,500 annual auto-renewal listed
|
Include recurring software cost in total-cost and payback models.
|
|
Detailed wire gauges
|
0.7, 0.8, and 0.9 mm
|
Match the lab’s actual wire inventory and appliance prescriptions before purchasing.
|
|
Featured-page range
|
0.5–1.0 mm
|
This conflicts with the detailed pages; confirm the exact supported configuration with 3DNA Dental.
|
|
Wire materials
|
Stainless steel and CoCr listed on the featured page
|
Material-specific validation still matters because springback and forming behavior vary.
|
|
File input
|
Standard STL
|
“STL-compatible” does not remove the need to test scanner export, mesh quality, file transfer, and software interoperability.
|
|
Infrastructure
|
AC 100–240 V, DC 24 V operation, standard compressed air
|
Plan electrical placement, air quality and pressure, ventilation, service access, and bench load.
|
|
Listed appliances
|
Hawley retainers, Adams and C-clasps, labial and lingual bows, welded retainers, TPA, Nance bows, tongue gates, and labial bumpers across the product pages
|
Validate each appliance family, material, gauge, and design template before routine production.
|
The diameter discrepancy deserves attention. The featured page presents a broad 0.5–1.0 mm range, while the detailed hardware and software pages identify 0.7, 0.8, and 0.9 mm. That does not necessarily mean either page is wrong; different tooling, firmware, material profiles, or regional configurations may be involved. It does mean a laboratory should request a written compatibility list for the exact machine and software package it will receive.
Speed: cycle time is not total turnaround time
3DNA Dental’s featured comparison states 15–30 minutes per appliance for manual bending and 3–5 minutes for the Wire Bender S. If representative of a lab’s actual work, that difference is operationally important. It can reduce the time a specialist spends physically forming routine components and allow multiple designs to be queued or processed with less continuous hand work.
Figure 1. Manufacturer-stated bending-time ranges. These figures are not an independent test and do not represent total end-to-end laboratory time.
A fair comparison must use the same boundary around both processes. For the robot, “3–5 minutes” may describe the bending cycle rather than all labor associated with the case. A lab’s stopwatch should include:
|
Before the bend
|
During production
|
After the bend
|
|
Scan-quality review, file export, case naming, STL import, tooth and gingival recognition review, wire-path approval, material confirmation, and loading
|
Machine cycle, operator interruptions, queue management, calibration events, and fault recovery
|
Unloading, cut-end finishing, fit on the model, dimensional or visual inspection, integration into the appliance, documentation, and any rework
|
A time study should also distinguish machine time from active operator touch time. The robot can create value only when the saved technician time is genuinely recoverable—for example, when the technician can perform acrylic work, finishing, quality control, design, repairs, or other production tasks while the machine runs.
The digital workflow, step by step
The Wire Bender S is part of a broader digital chain. Orthodontic digital workflow generally rests on three pillars: digital acquisition, software manipulation, and manufacturing. Research describes benefits in standardization, time efficiency, and appliance production, but it also identifies adoption barriers including cost, training, scanner selection, and interoperability.
Figure 2. Original conceptual illustration of the Wire Bender S workflow. It is not a screenshot of the commercial software.
1. Scan and export. Capture a complete dental arch and export a clean STL. The featured page states compatibility with standard STL files from major intraoral scanners. In practice, the lab should validate scanner-specific export settings, mesh completeness, tooth surfaces, gingival margins, distal anatomy, and the transfer of the correct patient and prescription data.
2. Generate and review the design. The software page states that the AI can generate a 3D wire design in approximately ten seconds, identify wire diameter, select a bending profile, and permit manual fine-tuning. The decisive action is not merely generation; it is the trained review of the proposed path, offsets, clasp geometry, acrylic boundary, and clearances.
The product’s software workflow shown on a dental model. Product image source: 3DNA Dental. This article does not reproduce or infer patient-identifying data.
3. Bend and cut. The system executes the programmed path with dual bending heads and an integrated cutter. The detailed hardware page publishes axis displacement and bend-resolution specifications, while the software page describes camera-based angle recognition and correction.
4. Verify, finish, and deliver. The featured page itself includes verification on a model before integrating the wire into the final device. That last step is essential. The machine can reproduce a digital instruction, but it cannot guarantee that the scan was accurate, the prescription was correct, the material behaved as expected, or the patient’s oral condition is unchanged.
Precision is a chain, not a single specification
A common purchasing mistake is to equate machine resolution with clinical fit. A published axis displacement figure describes one part of the mechanism. Clinical fit depends on the entire chain:
patient anatomy → scan → STL mesh → landmark detection → wire-path design → bend compensation → material response → cutting and finishing → model verification → chairside assessment
Every link can contribute error. An in-vivo study comparing five intraoral scanners reported overall full-arch trueness of 76.6 ± 79.3 micrometers and precision of 56.6 ± 52.4 micrometers, with significant differences among scanners and measured distances. The authors warned that full-arch dimensional accuracy can vary by device and that errors may accumulate across the arch. A 2025 systematic review found that most included clinical studies reported similar or clinically acceptable accuracy for digital and conventional full-arch impressions, but its pooled findings were contradictory and highly heterogeneous; it also focused mainly on implant-supported prostheses rather than orthodontic wire appliances.
These studies do not evaluate the Wire Bender S. They support a more general operational point: the robot cannot correct an inaccurate digital model unless the workflow detects the problem before bending.
Robotic wire bending has its own engineering variables. The literature highlights alloy-dependent springback, the need for quantitative bending models, wire fatigue, bend sequencing, and collision-free manipulation. Independent reviews generally support the potential for higher reproducibility and efficiency than manual bending, but the evidence is spread across different robotic systems and does not independently verify the Wire Bender S’s specific claims.
Model fit versus clinical fit
A useful quality-control distinction is between model fit and clinical fit.
|
Verification layer
|
Question
|
Typical owner
|
|
Digital input
|
Is the STL complete, correctly oriented, and representative of the anatomy?
|
Scanner operator and digital technician
|
|
Design intent
|
Does the wire path match the prescription, appliance type, undercut strategy, and tissue clearance?
|
Orthodontic technician and prescribing clinician
|
|
Manufacturing output
|
Did the robot reproduce the design without wire damage, collision, slip, or incomplete cutting?
|
Machine operator and quality-control technician
|
|
Model fit
|
Does the formed wire adapt correctly to the physical or printed model?
|
Laboratory technician
|
|
Clinical fit
|
Does the final appliance provide appropriate retention, comfort, clearance, and function in the patient?
|
Licensed clinician
|
Completed wire components on dental models. Product image source: 3DNA Dental.
Biology can change between scan and delivery. Teeth may move, tissues can differ from the captured surface, and an apparently precise model fit may still require chairside assessment or a minor adjustment. Automation should therefore reduce avoidable primary fabrication work—not eliminate professional verification.
A transparent ROI framework
The machine’s listed price makes economics unavoidable. Yet a credible payback model should not begin with a promised percentage reduction in labor. It should begin with a lab-specific time study and the number of appliances that are genuinely eligible for the automated workflow.
The following formulas make the logic auditable:
annual recoverable technician hours = annual eligible units × (manual active minutes − automated active minutes) ÷ 60
annual labor-value opportunity = annual recoverable hours × loaded hourly labor cost
simple payback months = initial investment ÷ (annual labor-value opportunity − recurring annual cost) × 12
The Bureau of Labor Statistics reports a 2025 median of $22.63 per hour for the broader combined occupation group of dental and ophthalmic laboratory technicians and medical appliance technicians. BLS projects a 2% employment decline from 2025 to 2035, yet approximately 7,100 openings per year, largely from replacement needs. This is useful as a public benchmark, but it is not a precise wage for an experienced orthodontic wire specialist. A lab should substitute its own fully loaded compensation, including payroll burden and relevant overhead.
Figure 3. Illustrative payback sensitivity, not a forecast or guarantee. All assumptions are printed in the chart.
The chart uses these explicit assumptions: $20,999 initial price, $1,500 annual software, 250 workdays, the BLS benchmark multiplied by a 1.30 labor-load factor, and two active operator minutes per automated unit. It excludes financing, maintenance, utilities, compressed air, tax effects, wire and tooling, downtime, rejected scans, remakes, revenue changes, installation, and residual value.
Using the midpoint of the manufacturer’s manual-time range—22.5 active minutes—produces the following illustrative results:
|
Eligible units per workday
|
Recoverable hours per year
|
Net annual labor-value opportunity after software
|
Illustrative simple payback
|
|
2
|
170.8
|
$3,526
|
71.5 months
|
|
5
|
427.1
|
$11,064
|
22.8 months
|
|
10
|
854.2
|
$23,629
|
10.7 months
|
|
20
|
1,708.3
|
$48,757
|
5.2 months
|
The table does not say the lab will save these amounts. It says that, under the stated assumptions, this is the value of the technician time that could become available after paying the annual software fee. If that time cannot be productively redeployed, the economic benefit is smaller. If real automated touch time, maintenance, financing, or downtime is higher, payback is longer. If a lab’s loaded specialist rate and eligible volume are higher, payback may be shorter.
A purchase decision should also test utilization. A fast machine that is used twice per week can be less attractive than a slower manual process embedded in existing labor. Conversely, a consistent daily queue of compatible retainers and clasps can make robotic capacity much more valuable.
Staffing: fewer hand bends, different competencies
3DNA Dental contrasts years of manual experience with days of operator training. That comparison captures the intended ease of operation, but it should not be read as “days to mastery.” An operator may learn the interface quickly while the laboratory still needs time to validate templates, document acceptance criteria, study failure modes, and train backup personnel.
The most effective operating model is likely hybrid. Senior technicians define standards, validate materials and appliance families, supervise digital designs, and resolve exceptions. Other trained team members can prepare files, load wire, run approved jobs, perform first-line checks, and document production. Manual wire-bending expertise remains available for corrections, unusual cases, and downtime.
This approach preserves the ADA’s central view of the technician as a skilled professional while using automation to reduce repetitive execution.
Implementation checklist for a serious evaluation
|
Workstream
|
Questions to resolve before go-live
|
Evidence to retain
|
|
Case selection
|
Which appliances, gauges, and materials are eligible? Which remain manual?
|
Written compatibility matrix and approved prescriptions
|
|
Scanner and STL
|
Can every referring scanner export a complete, correctly scaled STL? Are open exports available?
|
Test files, scan protocol, naming rules, transfer log
|
|
Design validation
|
Who approves AI-generated paths? Which parameters may operators change?
|
Approved templates, permission levels, revision history
|
|
Facilities
|
Is the bench rated for a 60 kg device? Are power and compressed air adequate? Is service access clear?
|
Site-readiness checklist and installation sign-off
|
|
Material control
|
How are wire lot, gauge, and alloy verified? How is springback behavior qualified?
|
Incoming inspection, lot traceability, validation samples
|
|
Quality control
|
What constitutes pass/fail for geometry, model fit, finish, retention, and tissue clearance?
|
Inspection form, photographs where permitted, nonconformance log
|
|
Maintenance
|
What is the cleaning, calibration, inspection, and bending-head replacement schedule?
|
Maintenance log, spare-parts list, support contacts
|
|
Downtime
|
How will urgent work be completed if the machine or software is unavailable?
|
Manual fallback SOP and priority rules
|
|
Data governance
|
Where are STL files stored? Who can access them? How are exports, backups, and deletions controlled?
|
Access policy, backup test, retention policy, vendor security review
|
|
Economics
|
What is measured manual touch time, automated touch time, eligible volume, and productive redeployment?
|
Four-to-six-week baseline time study and post-launch review
|
3DNA Dental states that U.S. support includes installation, training, ongoing technical assistance, and software updates. A laboratory should convert those general promises into purchase-specific terms: response times, remote versus onsite service, warranty scope, preventive maintenance, software-renewal pricing, update policy, backup procedures, spare-part lead times, and what happens to production if a subscription lapses.
Where manual bending still wins
Manual wire bending remains the better choice in several situations. A low-volume practice may not have enough repeatable work to justify the capital and recurring software expense. A highly experienced technician may complete a quick chairside correction faster than a new digital case can be prepared. Unusual wire materials, diameters, or geometries may fall outside the validated machine configuration. Manual capability is also indispensable during downtime and for final adjustments that respond to real anatomy rather than a static digital model.
The goal should not be to declare one method universally superior. The goal is to assign each method to the work it performs best.
|
Best fit for automation
|
Best fit for manual bending
|
Best fit for a hybrid workflow
|
|
Repeated appliance families, stable STL inputs, daily eligible volume, documented templates, measurable production queues
|
Immediate corrections, rare designs, very low volume, unsupported gauges or materials, machine downtime
|
Automated primary fabrication with manual review, finishing, fine-tuning, and exception handling
|
Final Verdict
The strongest case for the DenckOrtho Wire Bender S is not that it makes human expertise obsolete. It is that it may allow a laboratory to reserve scarce expertise for the decisions that require it.
Its published feature set is substantial: STL-based design, AI-assisted wire-path generation, automated gauge/profile handling, camera-supported calibration, dual-head forming, and integrated cutting. Independent literature supports the broader premise that robotic wire bending can improve reproducibility and efficiency, while also warning that material behavior, springback compensation, scan quality, and clinical verification still matter.
A lab with sufficient compatible volume should evaluate the system through a structured demonstration and pilot: bring representative STL files, confirm every wire and appliance configuration, measure total touch time, inspect outputs on models, document manual adjustments, and rerun the ROI model with actual results. A lab without that volume—or without reliable digital inputs—may gain more from improving manual standardization before adding a robot.
In other words, the best question is not “robot or technician?” It is “how should the robot and technician divide the work?”
Frequently asked questions
What appliances can the Wire Bender S produce?
Across its featured, hardware, and software pages, 3DNA Dental lists Hawley and wraparound retainers, Adams clasps, C-clasps, labial and lingual bows, welded retainers, tongue gates, transpalatal arches, Nance bows, and labial bumpers. The exact supported library may depend on software version, tooling, material, and configuration, so confirm the required appliance list in writing.
Does it work with every intraoral scanner?
The featured page states compatibility with standard STL files from major scanners. In practice, the relevant issue is whether the scanner workflow provides an open, correctly scaled, complete STL that the software can import reliably. Test the lab’s actual scanner exports during the demonstration.
How fast is it?
3DNA Dental states a 3–5 minute bending time per appliance, compared with 15–30 minutes for manual bending. Treat those as manufacturer-stated bending-cycle figures. Measure end-to-end active touch time and total turnaround using the lab’s own cases.
Is the output automatically ready for the patient?
No manufacturing method should bypass verification. The wire should be checked against the approved design and model, inspected for defects and finish, integrated into the appliance, and clinically assessed by the appropriate licensed professional.
Which wire diameters are supported?
The featured page states 0.5–1.0 mm, while the detailed product and software pages specify 0.7, 0.8, and 0.9 mm. Because the published pages conflict, confirm the exact supported diameters, materials, and bending profiles for the delivered system.
How should a lab estimate payback?
Use measured eligible volume, measured manual and automated active minutes, the lab’s fully loaded labor cost, the $20,999 listed machine price, recurring software and service costs, and realistic downtime. Count recoverable technician time only if the laboratory can redeploy it productively.
