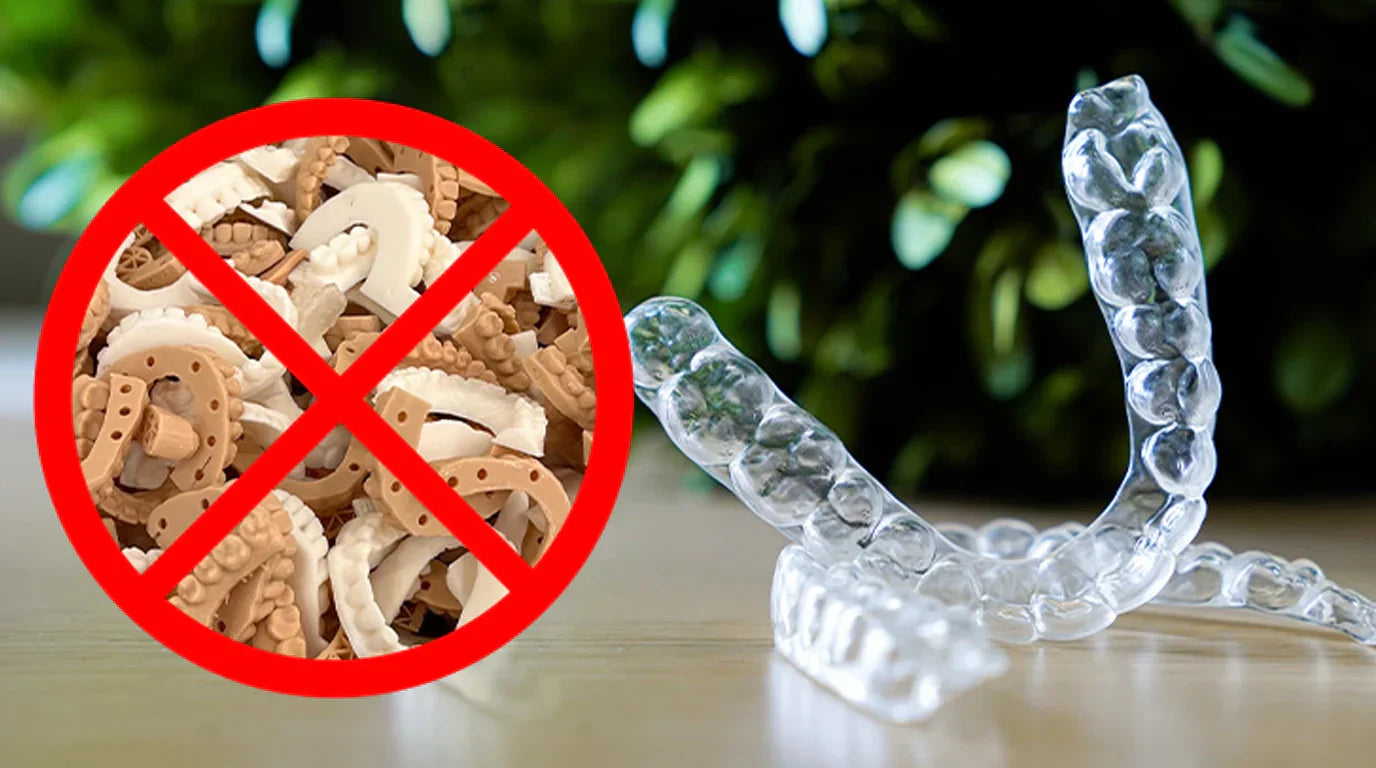

The Paradigm Shift in Orthodontics: Direct Print vs. Thermoformed Aligners
For over two decades, the manufacturing of clear aligners has relied on a multi-step, labor-intensive thermoforming process. However, the orthodontic industry is currently undergoing a transformative shift. The advent of direct 3D printed aligners, spearheaded by innovations like the LuxCreo Direct Print Aligner Resin (DCA Pro/Plus), is fundamentally changing how practices operate. This deep dive explores the clinical, operational, and material science differences between LuxCreo's direct print technology and traditional thermoformed materials, with a special focus on the dramatic chair-side time savings and workflow efficiencies.
The Bottleneck of Thermoforming
The traditional thermoformed aligner manufacturing process is inherently inefficient. It requires a digital scan to be converted into a series of physical 3D printed models representing incremental tooth movements. Once printed, these models undergo post-processing before a thermoplastic sheet (such as PET-G or TPU) is heated and vacuum-formed or pressure-formed over them. Finally, the aligners must be manually trimmed, polished, and quality-checked.
This analog-digital hybrid workflow presents several significant challenges for orthodontic practices. When outsourced to a commercial laboratory, the entire process from initial scan to patient delivery typically takes two to four weeks. Even when brought in-house, the labor requirement is substantial. Studies indicate that the active, hands-on labor time for thermoforming is approximately 5.5 minutes per aligner [4]. The necessity of printing physical models not only consumes time but also generates massive amounts of non-recyclable plastic waste.
The Efficiency of Direct 3D Printing
LuxCreo's direct 3D printing workflow utilizing their FDA Class II 510(k)-cleared Dental Clear Aligner (DCA) resin eliminates the need for physical models entirely. The process moves directly from digital design software (LuxDesign) to the finished product. Aligners are printed layer-by-layer using high-resolution Digital Light Processing (DLP) technology, followed by automated washing (iLuxWash) and uniform UV curing (iLuxCure Pro).
The impact on practice efficiency is profound. By removing the model printing, thermoforming, and manual trimming steps, the active labor requirement plummets from 5.5 minutes to just 1.5 minutes per aligner—a 73% reduction in hands-on staff time [5]. More importantly, the total production time collapses from weeks to mere hours. A complete set of aligners can be designed, printed, and post-processed in approximately 2 to 3 hours, enabling true same-day or same-visit treatment starts [3]. This rapid turnaround significantly improves patient conversion rates and satisfaction, while allowing clinicians to address mid-course corrections immediately without lab delays.
Economic Impact
Beyond time savings, direct printing fundamentally alters fabrication economics. When factoring in all costs (materials and labor), an in-house direct printed aligner costs approximately $12.47, compared to $15.87 for a thermoformed alternative. For a typical 30-pair case, this translates to a 47% reduction in total production costs, saving practices hundreds of dollars per patient [5].
Material Science: ActiveMemoryâ„¢ vs. Plastic Deformation
The operational efficiencies of direct printing are matched by significant advancements in material science. Traditional thermoformed plastics suffer from severe limitations under intraoral conditions. During the thermoforming process, as the plastic stretches over the physical model, it undergoes uncontrolled thinning. A 0.75 mm plastic sheet can thin out to between 0.38 mm and 0.69 mm, leading to inconsistent force application [4]. Furthermore, thermoformed polymers experience irreversible creep in the warm, moist environment of the mouth. They typically exert a high, often painful, initial force followed by rapid decay, losing up to 40% of their therapeutic force within the first week of wear.
LuxCreo's DCA resin is engineered with proprietary ActiveMemory™ photopolymer technology. This multi-component architecture decouples intraoral mechanical stability from post-removal thermal restoration. The material features an exceptionally high glass transition temperature (Tg of 118°C for DCA and 130°C for DCA Plus), ensuring it remains rigid at body temperature (37°C) to deliver a continuous, gentle orthodontic force [2].
The defining characteristic of LuxCreo's 4D aligners is their shape memory capability. When subjected to thermal excitation (heating in water above 60°C), the flexible segments of the polymer soften, allowing the aligner to snap back to its original geometry and recover its initial force profile. Studies demonstrate that the material can achieve 99.4% shape recovery within a ±0.1 mm tolerance upon heat excitation [1]. This thermal rejuvenation process can be performed daily by the patient, ensuring consistent force delivery and minimizing the need for mid-treatment refinements.
Clinical Performance and Accuracy
The elimination of the thermoforming step also results in vastly superior dimensional accuracy. Clinical metrology studies utilizing micro-CT scans have shown that direct-printed aligners achieve approximately 96.25% accuracy within ±0.1 mm tolerances, compared to around 75.07% accuracy with ±0.2 mm tolerances for thermoformed aligners [4]. The ability to digitally control the thickness of the printed aligner ensures uniform force application across all tooth surfaces.
Mechanically, LuxCreo DCA Pro exhibits exceptional durability, boasting a flexural strength of 1443 MPa and a tensile modulus of 990 MPa. It offers a 10x increase in fatigue resistance and a 3x increase in abrasion resistance compared to standard formulations [1]. This durability, combined with precise adaptation to dental undercuts, frequently reduces the clinical reliance on composite attachments, further saving chair time during patient visits.
Summary Comparison
|
Feature
|
Traditional Thermoformed Aligners
|
LuxCreo Direct Print Aligners
|
|
Active Labor per Aligner
|
~5.5 minutes
|
~1.5 minutes (73% reduction)
|
|
Total Production Time
|
2-4 weeks (outsourced) / 3 hours (in-house)
|
2-3 hours (Same-day delivery)
|
|
Cost per Aligner (Labor + Materials)
|
$15.87
|
$12.47 (19% reduction)
|
|
Dimensional Accuracy
|
~75% within ±0.2 mm
|
~96% within ±0.1 mm
|
|
Force Delivery
|
High initial force, rapid decay (up to 40% loss in 7 days)
|
Sustained light force, minimal decay
|
|
Shape Memory
|
Irreversible plastic deformation
|
99.4% recovery with thermal activation
|
|
Environmental Impact
|
High waste (discarded physical models)
|
Low waste (no physical models required)
|
Conclusion
The transition from thermoformed plastics to direct 3D printed resins represents one of the most significant advancements in modern orthodontics. LuxCreo's Direct Print Aligner Resin not only solves the mechanical and dimensional shortcomings of thermoforming but completely overhauls practice efficiency. By reducing active labor by 73%, cutting total production costs by nearly half, and enabling true same-day treatment starts, direct printing empowers clinicians to deliver superior patient care while optimizing their operational workflows.
References:
[1]: https://luxcreo.com/products/materials/dental-resins/dca-pro "LuxCreo. "DCA Pro Dental Resin.""
[2]: https://apospublications.com/assessment-of-active-memory-of-photo-curable-resins-for-luxcreo-dca-direct-printed-3d-aligners/ "APOS Trends in Orthodontics. "Assessment of active memory of photo-curable resins for LuxCreo DCA direct-printed 3D aligners.""
[3]: https://luxcreo.com/luxcreo-fda-cleared-direct-print-4d-aligners-a-comprehensive-overview/ "LuxCreo. "FDA Cleared Direct Print 4D Aligners: A Comprehensive Overview.""
[4]: https://www.linkedin.com/pulse/direct-printed-vs-thermoformed-clear-aligners-analysis-lucila-cherem-miiof "Cherem, L. "Direct Printed vs. Thermoformed Clear Aligners Analysis." LinkedIn Pulse."
[5]: https://www.trianchor.capital/post/luxcreo-fda-cleared-direct-print-4d-aligners-a-comprehensive-overview "Trianchor Capital. "LuxCreo FDA-Cleared Direct Print 4D Aligners.""
