Features & Benefits
Compact All-in-One Dental 3D Printing System — The PioNext Mini combines high-resolution LCD 3D printing with integrated post-curing in a remarkably compact footprint, making it ideal for chairside dental 3D printing, dental offices, orthodontic practices, and small dental labs.
9K Resolution + 18 μm Pixel Size — High-resolution 9K LCD technology (8520 × 4320) and an 18 μm pixel size deliver the fine detail and dimensional precision required for dental models, surgical guides, restorative applications, aligners, retainers, and other digital dentistry workflows.
Fast, Flexible Chairside Production — With 385 nm and 405 nm dual-wavelength technology, printing speeds up to 60 mm/h, and integrated 405 nm curing, the PioNext Mini is designed to streamline same-day dental production while supporting a broad range of authorized dental resins.
Product Description

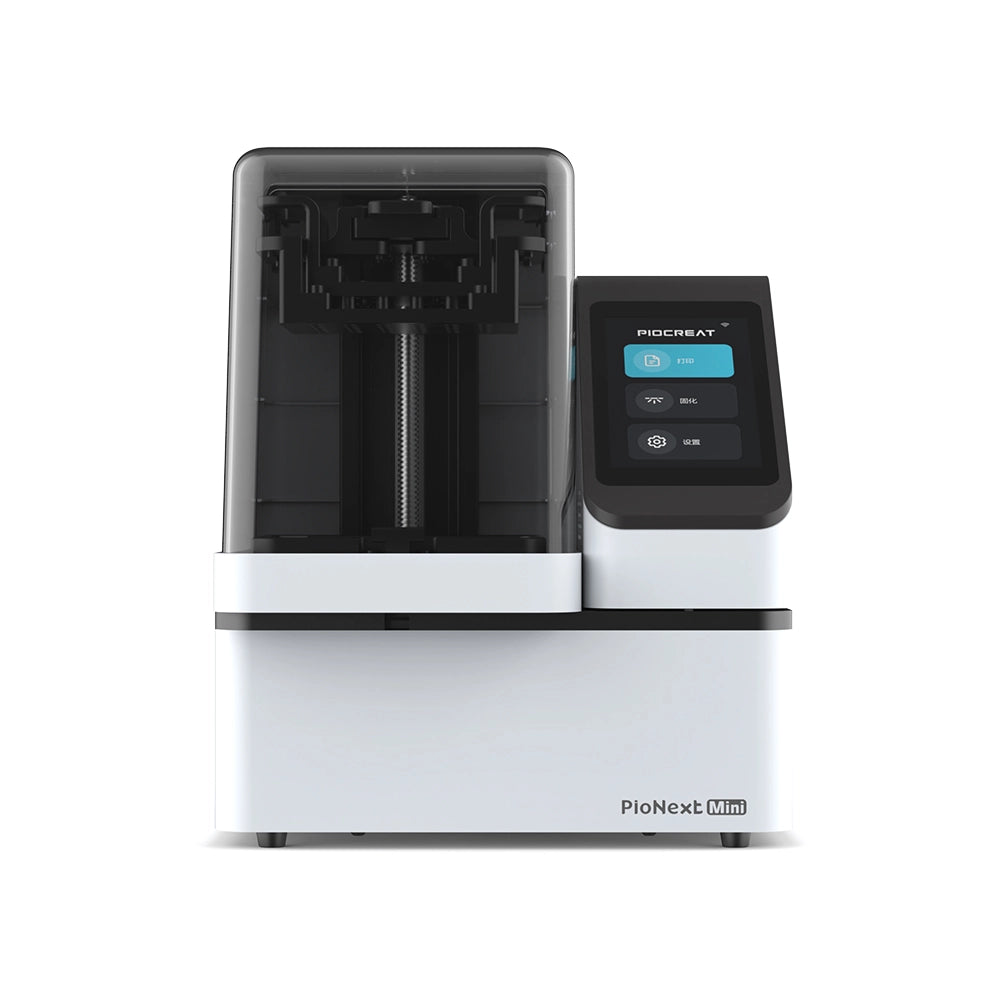

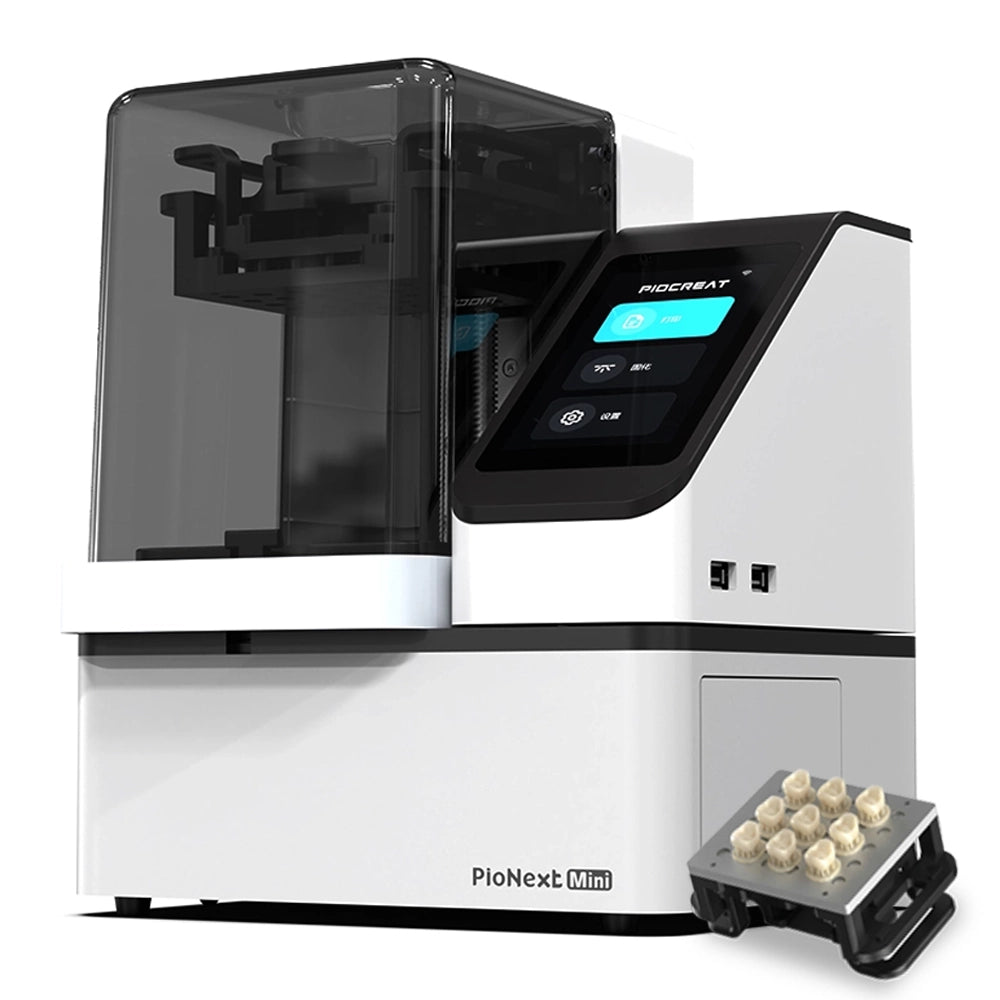

PioNext Mini Dental 3D Printer brings professional digital dentistry production into an ultra-compact, chairside-friendly platform. Measuring just 200 × 170 × 241 mm, the PioNext Mini is designed for dental practices and laboratories that need high-performance resin 3D printing without the footprint of a conventional production system. Its all-in-one design combines precision printing and integrated curing to help simplify the digital dental workflow and support efficient same-day manufacturing.
At the heart of the PioNext Mini is a 9K LCD imaging system with an 18 μm pixel size, delivering the resolution needed for detailed dental production. The printer offers an 80 × 70 × 80 mm build volume, layer thicknesses from 0.01–0.1 mm, and print speeds up to 60 mm/h. Dual 385 nm and 405 nm wavelengths expand material flexibility, while compatibility with PioCreat BOX and CHITUBOX Dental software makes the PioNext Mini easy to integrate into modern digital dentistry workflows.
The PioNext Mini is engineered for chairside dental manufacturing, supporting applications including dental models, surgical guides, crowns and bridges, temporary restorations, denture bases, orthodontic models, clear aligners and retainers, and other authorized resin applications. Its integrated curing chamber, USB/Wi-Fi connectivity, compact portable design, and broad resin compatibility make it an attractive solution for dentists, orthodontists, prosthodontists, and dental laboratories seeking faster, more efficient digital workflows.
Technical Specifications
- Model: PioNext Mini
- Printing Technology: LCD resin 3D printing
- Build Volume: 80 × 70 × 80 mm
- Resolution: 9K — 8520 × 4320 pixels
- Pixel Size: 18 μm
- XY Accuracy: Approximately 14 × 19 μm
- Layer Thickness: 0.01–0.1 mm
- Maximum Print Speed: 60 mm/h at 0.1 mm layer thickness
- Light Source: Dual wavelength — 385 nm / 405 nm
- Integrated Curing: 405 nm curing chamber
- Curing Area: 76.5 × 72.5 × 37 mm
- Curing Light Intensity: >150 mW/cm² at 405 nm
- Machine Dimensions: 200 × 170 × 241 mm
- Package Dimensions: 310 × 307 × 340 mm
- Net Weight: 4.86 kg
- Gross Weight: 6.8 kg
- Display: 3.97-inch capacitive color touchscreen
- Connectivity: USB / Wi-Fi
- Slicing Software: PioCreat BOX / CHITUBOX Dental
- Input Voltage: 100–240V AC, 50/60Hz
- Rated Power: 120W
-
Resin Compatibility: Ceramic Crown Resin, Surgical Guide Resin, Crown & Bridge Resin, Temporary Restoration Resin, Denture Base Resin, Removable Die Model Resin, Ortho Model Resin, Ortho Model 2.0 Resin, and other authorized dental resins.
