The Ultimate Guide to Xenon Flash Curing: Rodin Chroma Flash vs. NK Optik Otoflash G171

Aug 10 2026
PAUL WILKENS
0 Comments

Post-curing is a critical, yet often overlooked, step in the dental 3D printing workflow. While the 3D printer forms the initial shape of the restoration, it is the post-curing unit that finalizes the polymerization process, ensuring the material achieves its maximum mechanical strength, dimensional stability, and biocompatibility. In recent years, xenon flash curing technology has emerged as a superior alternative to traditional UV LED curing, offering deeper penetration and more consistent results.

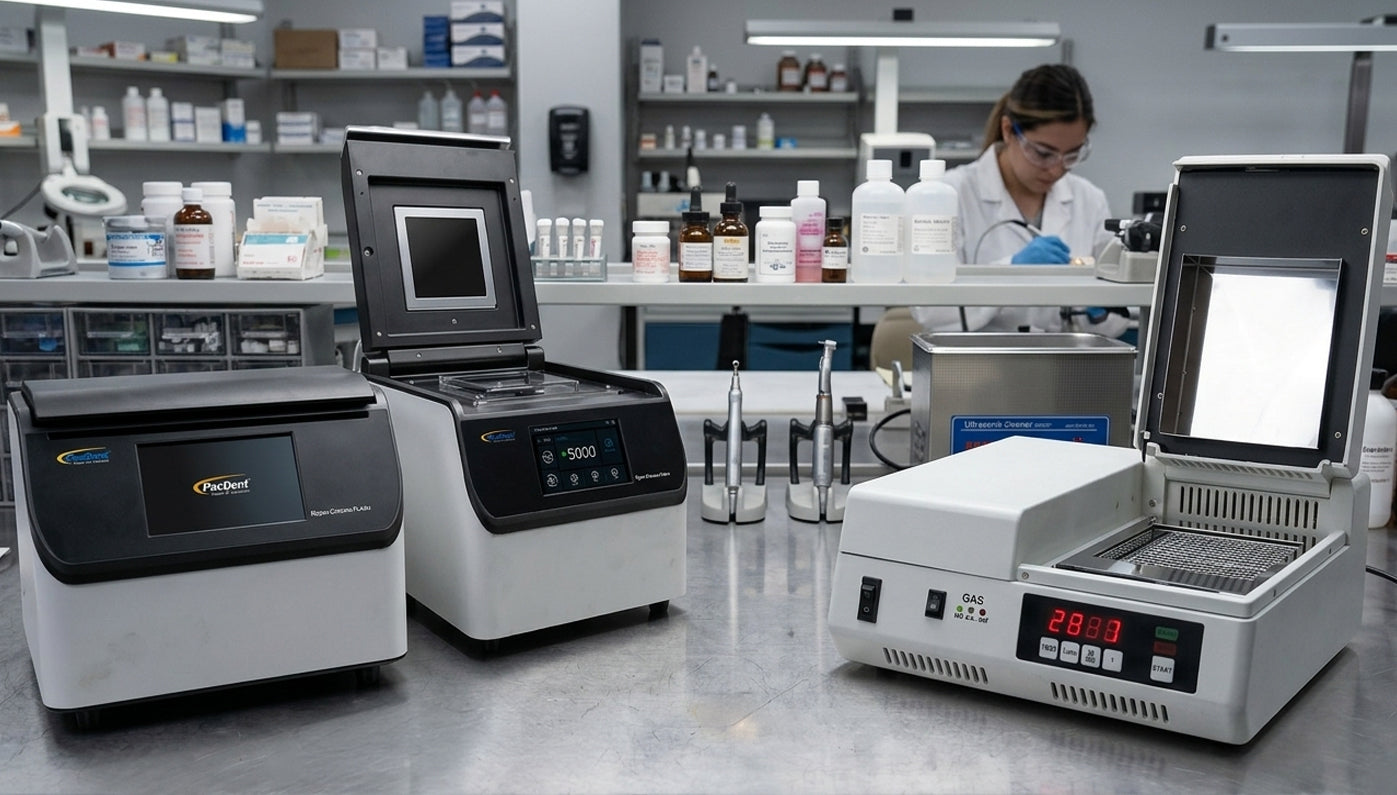

In this deep dive, we compare two of the leading xenon flash curing units on the market: the newly introduced Rodin® Chroma Flash™ Light Cure Box by Pac-Dent and the industry-standard NK Optik Otoflash G171. Whether you are running a high-volume dental laboratory or a boutique chairside clinic, understanding the nuances between these two powerful devices is essential for optimizing your digital workflow.

Why Xenon Flash Technology?

Before comparing the specific units, it is important to understand why xenon flash technology is gaining traction over continuous UV LED systems. Traditional LED curing units typically emit continuous light at specific, narrow wavelengths (often 385 nm or 405 nm). While effective for many standard resins, this narrow spectrum can struggle to fully penetrate highly opaque or ceramic-filled materials.

Xenon flash (or stroboscopic) technology, on the other hand, utilizes high-energy xenon bulbs that emit short, intense bursts of light across a much broader spectrum.

"The strobing effect of xenon flashes allows for deep penetration without overheating the resin, resulting in superior mechanical properties and reduced residual monomer content."

This broad-spectrum, high-intensity approach ensures that a wider variety of photoinitiators are activated simultaneously, leading to a higher degree of conversion and better overall physical characteristics for the final dental appliance.

Head-to-Head: Specifications at a Glance

Both the Rodin Chroma Flash and the NK Optik Otoflash G171 are premium devices designed for professional dental applications. Below is a detailed comparison of their technical specifications.

Feature	Rodin® Chroma Flash™	NK Optik Otoflash G171
Light Source	Xenon Flash / Stroboscopic	2 Xenon Flash Bulbs (10 flashes/sec)
Wavelength Range	280–950 nm	280–700 nm (Peak 400-500 nm)
Inner Chamber Volume	111 x 111 x 43.5 mm (536.4 cm³)	120 x 120 x 50 mm (720.0 cm³)
Device Dimensions	256 x 330 x 223.76 mm	310 x 310 x 140 mm
Weight	8.2 kg	6.0 kg
Rated Voltage	110-240V	100-230V (250W input)
Nitrogen (N₂) System	N₂-Free Design (N₂ Compatible)	Requires N₂ Connecting Kit (Included)
Curing Cycle Time	8 Minutes (Standard)	Adjustable (1-9,999 flashes)
Warranty	2-Year Limited Warranty	1-Year Warranty
Price	$3,499.00	$3,699.00

Deep Dive: Rodin Chroma Flash Light Cure Box

The Rodin Chroma Flash by Pac-Dent is positioned as a next-generation flash post-curing system. Designed meticulously around the performance requirements of Rodin materials (such as their popular ceramic-filled nano-hybrid resins), it also functions as an open, material-first system compatible with leading third-party resins.

Key Advantages

1. Unmatched Wavelength Spectrum (280–950 nm)
The Chroma Flash boasts an incredibly broad wavelength range extending up to 950 nm. This ensures deep and consistent curing, which is crucial for achieving optimal mechanical properties and stability, particularly in highly characterized or opaque restorations .

2. N₂-Free Convenience with Intelligent Safeguards
One of the most significant barriers to adopting advanced curing systems is the complexity of managing nitrogen gas tanks and regulators. The Chroma Flash is engineered to function effectively as an N₂-free system, drastically simplifying laboratory and chairside setups . Furthermore, it features an "Intelligent Tack Cure Cycle" that automatically subtracts tack cure times from the total curing budget, preventing the overcuring of delicate appliances.

3. Modern Interface and Workflow
With a standard 8-minute curing cycle and no warm-up delay, the Chroma Flash is built for speed. Its modern touchscreen interface and wireless connectivity make it highly intuitive for operators.

Deep Dive: NK Optik Otoflash G171

The NK Optik Otoflash G171 is widely considered the industry "workhorse." Manufactured in Germany, it is one of the most tested and validated curing units on the market, relied upon by dental laboratories worldwide for its robust performance and reliability .

Key Advantages

1. Proven Nitrogen (N₂) Protective Gas System
The Otoflash G171 excels when connected to a medical-grade nitrogen supply. By displacing oxygen in the polymerization chamber, the nitrogen prevents the formation of an oxygen inhibition layer on the surface of the printed parts. This results in a completely non-stick, fully cured surface straight out of the box, eliminating the need for post-curing wiping or glycerin baths.

2. High-Frequency Flash Delivery
Utilizing two bottom-mounted xenon flashbulbs, the Otoflash delivers 10 flashes per second. This rapid strobe pulse technology provides light intensity that is 1,000 to 10,000 times higher during the flash period compared to continuous UV LEDs, ensuring excellent through-cure for thick parts.

3. Slightly Larger Chamber Capacity
While both units are relatively compact, the Otoflash G171 offers a slightly larger internal curing chamber (120 x 120 x 50 mm compared to Rodin's 111 x 111 x 43.5 mm). This additional volume can be beneficial when curing multiple arches or larger appliances simultaneously.

Performance Comparison and Total Cost of Ownership

When choosing between these two premium units, performance nuances and long-term costs must be considered.

As the radar chart illustrates, the Rodin Chroma Flash edges out slightly in ease of setup (due to its N₂-free design) and wavelength range. The Otoflash G171, however, remains highly competitive with its proven track record and slightly larger chamber volume.

Cost Considerations

The initial purchase price of the units is similar, with the Rodin Chroma Flash priced at $3,499.00 and the NK Optik Otoflash G171 at $3,699.00 (which includes the N₂ connecting kit). However, the total cost of ownership over time can vary.

Because the Otoflash G171 relies heavily on nitrogen gas to achieve its optimal tack-free finish, ongoing costs for N₂ cylinder refills must be factored into the laboratory budget. The Rodin Chroma Flash's ability to operate effectively without nitrogen provides a more predictable, lower long-term operational cost, further supported by its 2-year limited warranty compared to the Otoflash's 1-year warranty.

Applications in Dental 3D Printing

Both the Rodin Chroma Flash and the NK Optik Otoflash G171 are highly capable of curing a vast array of dental applications. The intense, deep-penetrating light provided by xenon flash technology makes them ideal for:

Crowns and Bridges: Ensuring maximum flexural strength and wear resistance for permanent and temporary restorations.

Denture Bases: Achieving complete polymerization to prevent residual monomer leaching, ensuring patient safety and biocompatibility.

Surgical Guides and Splints: Producing hard, scratch-resistant, and dimensionally accurate appliances for precise clinical placement.

Orthodontic Models and Aligners: Delivering fast, consistent cures for high-volume production environments.

Conclusion: Which Curing Unit is Right for You?

Both the Rodin Chroma Flash and the NK Optik Otoflash G171 represent the pinnacle of post-curing technology for dental 3D printing.

Choose the NK Optik Otoflash G171 if:

•You require the absolute certainty of a nitrogen-purged environment for completely tack-free surfaces.

•You prefer a highly validated, industry-standard unit with a long track record of reliability.

•You need a slightly larger curing chamber for your daily production volume.

Choose the Rodin® Chroma Flash™ if:

•You want the broadest possible wavelength spectrum (up to 950 nm) for deep curing of advanced ceramic-filled resins.

•You prefer the simplicity and cost savings of a nitrogen-free workflow.

•You value modern features like an intelligent tack cure cycle, touchscreen interface, and a longer 2-year warranty.

Ultimately, investing in either of these xenon flash curing units will significantly elevate the quality, consistency, and mechanical integrity of your 3D printed dental restorations.
