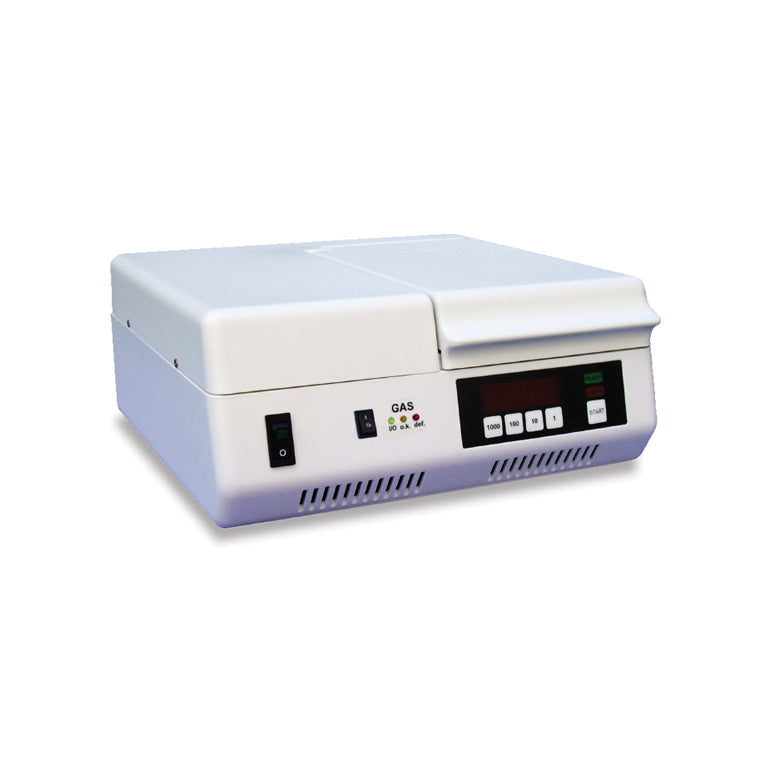

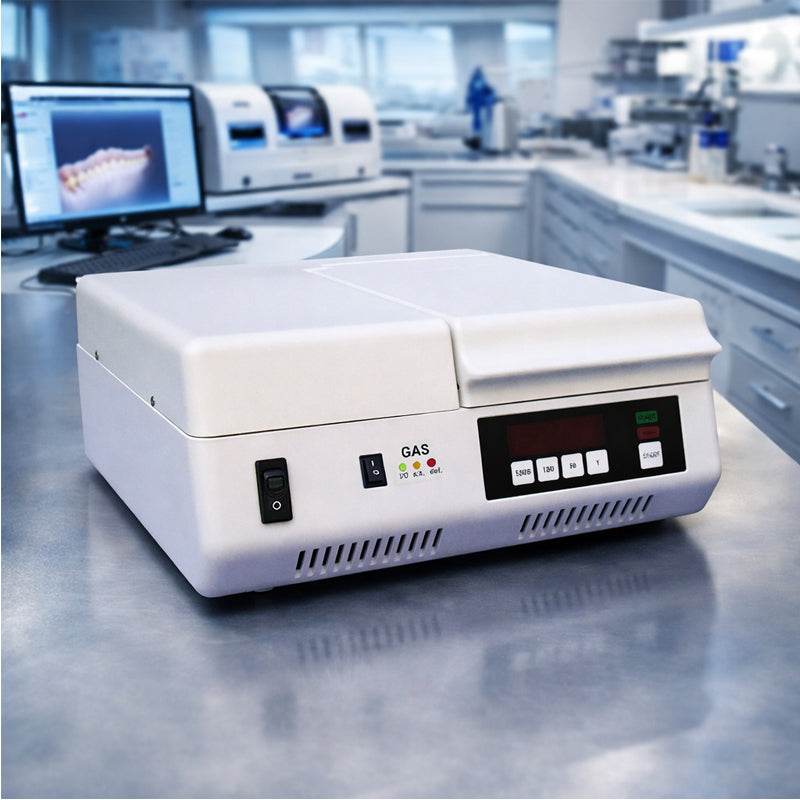

NK Optik Otoflash G171-6 with Protective Gas Port for Nitrogen
The Otoflash G171 is used for curing of light-curable resins through light-induced photopolymerization. It is optimised for quick curing of medical grade 3D Printed materials using Nitrogen. Featuring two bottom mounted flash lamps operating at 10 flashes per second.
Curing Chamber Dimensions: 120 L x 120 W x 50 H mm
Device Dimensions: 360 L x 310 W x 140 H mm
Light Source: Flash/Stroboscopic
Wavelength: 250 950 nm
Rated Voltage: 110Â 240 V
The Otoflash G171 is used for curing of light-curable resins through light-induced photopolymerization. It is optimised for quick curing of medical grade 3D Printed materials using Nitrogen. Featuring two bottom mounted flash lamps operating at 10 flashes per second.
The Otoflash G171 is also deliverable with a protective gas appliance (N2, Ar or CO2). This prevents any oxygen inhibition on the surfaces so that they are cured completely non-stick without any need to remove or wipe away the inhibition layer.
Includes N2-Connecting Kit
• N2-cylinder regulator 200 bar with screw thread CGA580 USA
• Quick coupling, NW 7,2
• Connecting hose, L = 2,5 m, Ø 6 mm
Curing Chamber Dimensions: 120 L x 120 W x 50 H mm
Device Dimensions: 360 L x 310 W x 140 H mm
Light Source: Flash/Stroboscopic
Wavelength: 250 950 nm
Rated Voltage: 110Â 240 V
