Micro Welding in an Argon Environment vs. a Non-Argon Environment for Dental Appliances

Aug 07 2026
PAUL WILKENS
0 Comments

The era of the soldering torch in dental laboratories is drawing to a close. The combination of inferior joint strength, biocompatibility risks, messy workflows, and the soaring cost of silver makes traditional soldering an outdated practice. As dental labs transition to micro laser welding, a critical technical decision emerges: whether to weld in an argon-shielded environment or an open-air (non-argon) environment.

For modern dental appliances—ranging from immediate loading implant bars to delicate orthodontic wires—the presence of argon gas during the laser welding process fundamentally alters the metallurgy of the joint. This deep dive explores the scientific differences between argon and non-argon environments and how the Orion LZR Benchtop Laser Welders from 3DNA Dental utilize integrated argon systems to deliver superior clinical results.

The Science of Argon Shielding in Micro Welding

When laser energy is applied to dental alloys such as titanium, cobalt-chromium (Co-Cr), and nickel-chromium (Ni-Cr), the metal reaches its melting point within milliseconds . In a non-argon environment, this molten weld pool is immediately exposed to atmospheric gases, primarily oxygen and nitrogen.

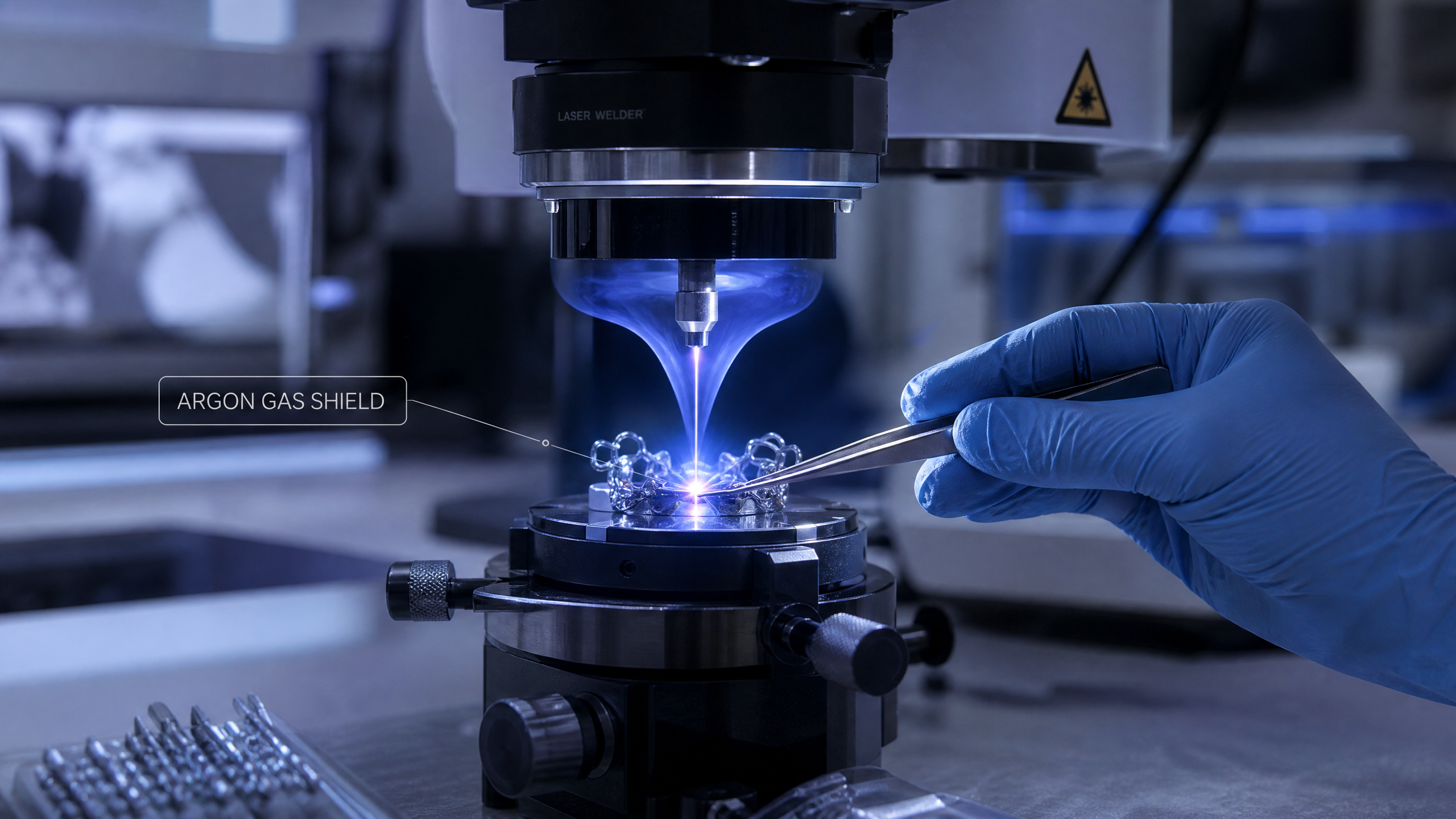

Argon is an inert, colorless, and non-toxic noble gas that is 38% denser than air. When deployed through a precision nozzle during laser welding, it displaces the ambient atmosphere, creating a protective envelope around the liquid metal. This shielding prevents atmospheric contamination until the metal solidifies.

The Perils of Non-Argon Welding

Welding without argon shielding gas introduces several metallurgical compromises that can jeopardize the longevity of a dental appliance:

Severe Oxidation and Embrittlement: Reactive metals, particularly titanium alloys, have a high affinity for oxygen at elevated temperatures. Oxygen absorption leads to the formation of brittle oxides, causing severe embrittlement and micro-cracking within the joint .

Weld Porosity: Without a protective gas blanket, oxygen and nitrogen infiltrate the weld pool. As the metal cools, these trapped gases form pores (tiny holes). These pores act as stress concentrators that significantly weaken the joint under the cyclic loading forces of the human jaw .

Discoloration and Poor Surface Finish: An open-air weld often results in a darkened, oxidized, and rough surface. This not only looks unprofessional but compromises the marginal integrity and biocompatibility of the appliance, increasing the risk of plaque accumulation and galvanic corrosion.

The Argon Advantage

Conversely, welding in a 99.996% pure argon environment (Argon 4.6) provides distinct advantages:

Optimal Mechanical Properties: Argon prevents the formation of brittle oxides, ensuring the weld retains a high percentage of the virgin alloy's original strength. A quality argon-shielded laser weld can be up to 250 times stronger than the best silver solder joint .

Homogeneous Fusion: Argon ionizes at high temperatures to provide a stable arc. This allows for a highly localized molten pool that fuses homogeneously without residual stress, minimizing the heat-affected zone (HAZ) and protecting adjacent heat-sensitive materials like acrylic resins or ceramics.

Pristine Aesthetics: The resulting weld is clean, bright, and oxidation-free, requiring significantly less post-weld grinding and polishing.

Material-Specific Impact: When is Argon Mandatory?

The necessity of argon shielding varies depending on the specific dental alloy being welded. While it is always best practice, for some materials, it is absolutely critical.

Titanium and Titanium Alloys (CP Ti, Ti-6Al-4V, Ti-6Al-7Nb)

For titanium, argon shielding is mandatory. Research indicates that the failure loads and percent elongation of argon-shielded laser-welded titanium are significantly greater than unshielded specimens . Welding titanium in open air guarantees embrittlement and joint failure.

Cobalt-Chromium (Co-Cr) and Nickel-Chromium (Ni-Cr)

For base metal alloys, the structural impact of argon is less pronounced. Studies show that the presence of argon does not affect the tensile strength of Co-Cr to a statistically significant degree . However, argon is still highly recommended to prevent surface oxidation and reduce porosity, saving the technician valuable finishing time.

Stainless Steel (Orthodontic Wires)

Argon shielding is highly recommended for stainless steel to prevent chromium oxidation. If the chromium oxidizes during welding, the alloy loses its corrosion resistance, leading to potential degradation in the oral environment.

The Cost-Benefit Reality for Dental Labs

Some laboratories hesitate to adopt argon shielding due to the ongoing consumable cost of the gas. However, a comprehensive cost-benefit analysis reveals that argon is a highly profitable investment.

An 80 cubic foot tank of argon typically lasts a busy lab 6 to 9 months. The Orion LZR systems optimize this usage with computer-controlled gas valves that only flow gas exactly when needed.

The true financial return comes from labor efficiency. By preventing oxidation and spatter, argon shielding virtually eliminates the need for extensive post-weld grinding, polishing, and cleaning. Furthermore, the dramatic reduction in joint failures and appliance remakes translates directly to the bottom line.

The Orion LZR Solution from 3DNA Dental

To harness the full power of argon-shielded micro welding, dental labs require equipment designed specifically for precision and efficiency. The Orion LZR Benchtop Laser Welder series, available through 3DNA Dental, represents the pinnacle of this technology.

Every Orion LZR model comes standard with integrated computer-controlled argon gas delivery systems. Operators can easily adjust the gas flow via the touchscreen interface, including setting post-weld flow times to ensure the metal cools in a protected environment.

Orion LZR Series Comparison

Feature	Orion LZR Eco	Orion LZR Select	Orion LZR Pro
Energy (Joules)	35 / 165	225	255
Peak Power	3-8 kW	10 kW	12 kW
Max Weld Speed	10 Hz	20 Hz	40 Hz
Spot Range	0.2 - 2.0 mm	0.2 - 2.0 mm	0.05 - 2.0 mm
Argon Integration	✓ Standard	✓ Standard	✓ Standard
Touchscreen	✓	✓	✓
HD Camera/HDMI	—	✓	✓
Price	$9,000	$19,900	$21,900

Featured Models

Orion LZR Benchtop Laser Welder (Eco Series)The ECO version provides unmatched precision at a budget-friendly price. Available in 35 or 165 Joules, it features a wide spot range, a large weld chamber, and can seam weld at up to 10 welds per second.

Orion LZR Benchtop Laser Welder (Pro Series)For high-volume labs requiring the ultimate in control and power, the Pro Series delivers 255 Joules of energy and blazing fast 40 Hz weld speeds. It includes advanced features like Gaussian smooth spot technology and an onboard HD camera.

Conclusion

Micro laser welding has fundamentally upgraded the capabilities of the modern dental laboratory. However, the technology is only as good as the environment in which it operates. While non-argon welding may seem like a shortcut, it compromises the structural integrity, biocompatibility, and aesthetics of the final appliance—particularly when working with titanium.

By investing in an argon-shielded system like the Orion LZR from 3DNA Dental, laboratories ensure pristine, high-strength welds, eliminate costly rework, and deliver superior restorations to their clinical partners.

Ready to upgrade your lab's joining capabilities? Explore the full range of Orion LZR Laser Welders at 3DNA Dental today.
