Transforming Clear Aligner Production with the Laser Aligner Cutter System

Jul 01 2026
PAUL WILKENS

The shift toward in-house clear aligner manufacturing has empowered orthodontic practices and dental laboratories to control their production timelines, reduce costs, and deliver faster treatment to patients. However, as digital design and 3D printing workflows have accelerated, the physical finishing of aligners has remained a stubborn bottleneck. Manual trimming is labor-intensive, time-consuming, and prone to human error. Enter the Laser Aligner Cutter (LAC) from 3DNA Dental—a fully automatic cutting solution designed to eliminate the finishing bottleneck and elevate the quality of clear aligners. Laser Aligner Cutter System

The Laser Aligner Cutter System offers a fully enclosed, automated trimming solution for clear aligners.

The Trimming Bottleneck in Digital Orthodontics

In a typical digital orthodontic workflow, the transition from a digital intraoral scan to a 3D-printed model is highly automated and precise. Thermoforming the aligner material over the printed model is also a straightforward, repeatable process. The disruption occurs during the final step: cutting the aligner from the thermoformed foil.

Traditionally, technicians use rotary tools, scissors, or heated scalpel blades to manually trace the gingival margin and free the aligner. This process not only demands significant hands-on labor but also introduces variability. A manual cut often leaves rough edges that require a secondary polishing step to ensure patient comfort.

The LAC addresses this challenge by replacing manual labor with precision laser technology. By automating the trimming process, the LAC ensures that the final physical product matches the exact specifications of the digital design. Workflow Chart

The LAC seamlessly integrates into the digital clear-aligner production workflow, automating the final, most labor-intensive step.

Speed, Precision, and Superior Edge Quality

The standout feature of the Laser Aligner Cutter is its efficiency. The system boasts an impressive process time of approximately 60 to 90 seconds per aligner. This rapid turnaround allows practices and labs to scale their production without proportionally increasing their labor costs.

Beyond speed, the LAC delivers exceptional cut and edge quality. Utilizing a 20W CO2 laser with a wavelength of 9.3μm, the system achieves a repeat accuracy of ±0.1mm. The heat of the laser seals the edge of the foil as it cuts, resulting in a smooth, comfortable finish that eliminates the need for secondary manual polishing.

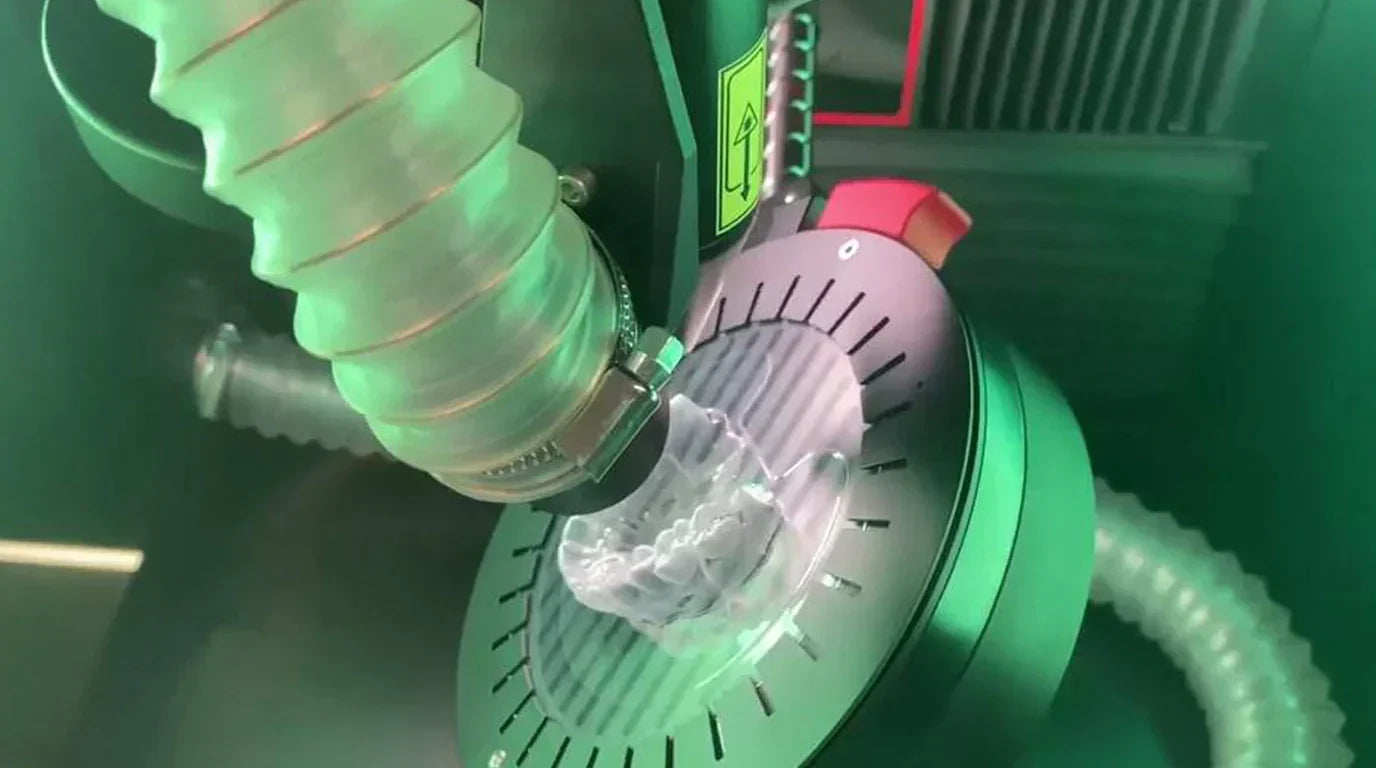

Laser Cutting In Use

The 20W CO2 laser provides precise, smooth cuts, eliminating the need for post-processing polishing.

Key Specifications at a Glance

The technical capabilities of the LAC make it a robust addition to any high-volume production environment:

Specification	Detail
Process Time	Approx. 60-90 seconds per aligner
Repeat Accuracy	±0.1 mm
Laser Type	CO2 (20W power, 9.3μm wavelength)
Foil Compatibility	Diameter: ø120-125mm, Height: 0.25-1mm
Power Consumption	900W (Single-phase, 110-230, 50/60Hz)
Noise Level	65 db(A)

Seamless Integration and Broad Compatibility

Adopting new hardware in a dental laboratory or practice requires assurance that the equipment will integrate with existing systems. The LAC is designed with versatile compatibility in mind. It works seamlessly with any 3D printing model and supports all common thermoformers.

To accommodate different thermoforming systems, 3DNA Dental offers a range of specific adapters, including options for the Aixin AX-PMU4, Scheu Biostar™, Scheu Ministar™, Barth Medical® B-Form, Erkodent Erkopress™ Motion, Erkodent Erkoform™, and Dreve Dentamid Drufomat Scan. LAC Separator Adapter

The system utilizes specialized adapters to ensure compatibility with a wide range of common thermoformers.

On the software side, the LAC is equally accommodating. It features digital interfaces for leading suppliers such as Dental Axess (Xflow/Xplan) and ArcadLab. Furthermore, it offers data compatibility with major vendors like 3Shape, OnyxCeph, and ORTH’UP. The system imports universal aligner data, utilizing STL files for the model and PTS, CSV, or XYZ files for the trim line. The included LAC Trimline Software ensures a smooth transition from digital design to physical execution.

The included LAC Trimline Software facilitates seamless data transfer from digital design to the cutting unit.

Safety and Environmental Control

Operating a laser cutting system requires robust environmental controls, particularly concerning the fumes generated when cutting thermoformed plastics. The LAC addresses this with a comprehensive suction unit requirement.

The system mandates a suction unit with an unimpeded air flow rate of 240 m³/h, utilizing a multi-stage filtration process that includes a G4 prefilter mat, an H13 HEPA filter, and an activated carbon filter. This ensures that the working environment remains safe and free of particulate matter and odors.

A robust, multi-stage suction and filtration unit ensures a safe and clean working environment during laser operation.

Conclusion: The Future of Aligner Manufacturing

As the demand for clear aligners continues to grow, the ability to produce them efficiently, consistently, and cost-effectively becomes a significant competitive advantage. The Laser Aligner Cutter System represents a critical leap forward in aligner manufacturing technology. By automating the most labor-intensive step of the process, delivering superior edge quality, and offering broad compatibility with existing digital workflows, the LAC is poised to become an indispensable tool for forward-thinking orthodontic practices and dental laboratories.

For practices looking to scale their in-house production while maintaining the highest standards of quality, the LAC offers a compelling, automated solution.
