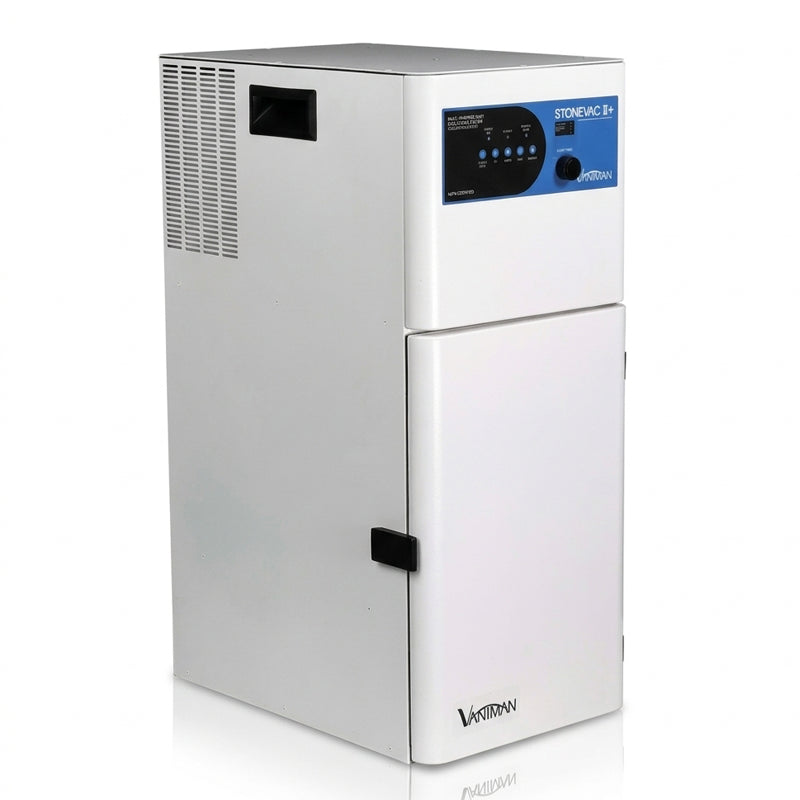

Vaniman StoneVac II Plus

The Vaniman StoneVac II Plus from 3DNA Dental is a high-volume dental laboratory dust collector engineered for demanding procedures involving heavier dry materials. Designed for green-state finishing, grinding, trimming, polishing, and micro-abrasive blasting, this powerful dust collection system captures particulate from stone, zirconia, gypsum, precious metals, ceramics, porcelain, acrylic, quartz, alloys, and other dry laboratory materials. The high-speed turbine motor and HEPA-grade filtration support reliable suction for dental laboratories, jewelry workspaces, and precision manufacturing environments that require effective dry-dust control.

The StoneVac II Plus adds Vaniman’s built-in AutoPilot technology, allowing the dust collector to turn on and off as a compatible micromotor handpiece or small lathe is operated. A digital AutoPilot readout, bagless removable dust bin, easy-access door, and push-button filter-cleaning system help streamline daily operation and maintenance. The base unit includes one 63.5 mm × 1,829 mm (2.5 in × 6 ft) suction hose and can be configured for a second workstation or an optional cyclone accumulator pre-filter for additional particulate separation.

Built-In AutoPilot Activation: AutoPilot technology enables a compatible micromotor handpiece or small lathe to automatically activate and deactivate the dust collector for a more efficient workflow.

High-Volume Suction Performance: High-speed turbine motor technology provides powerful collection for heavy dry dust produced during green-state finishing, grinding, trimming, and abrasive blasting.

HEPA-Grade Filtration: The replaceable HEPA cartridge captures 99.97% of dust particles at 0.3 microns to help manage fine particulate in laboratory work areas.

Bagless, Easy-Maintenance Design: A removable dust bin, accessible service door, and push-button filter cleaner simplify routine emptying and system maintenance.

Quiet Professional Operation: The StoneVac II Plus operates at 57 dBA, supporting effective dust collection at a sound level below a typical normal conversation.

Model: Vaniman StoneVac II Plus 10202.

System Type: High-volume, bagless dental laboratory dust collector with built-in AutoPilot control.

Base Configuration: One-station unit without an accumulator pre-filter.

Overall Dimensions: 254 mm wide × 381 mm long × 622 mm high (10 in wide × 15 in long × 24.5 in high).

Weight: 24.9 kg (55 lb).

Motor Type: High-speed, long-lasting turbine motor.

Noise Level: 57 dBA.

Filtration Type: Replaceable HEPA filter cartridge, part number 97001.

Filtration Performance: HEPA-grade filtration captures 99.97% of dust particles at 0.3 microns.

Dust Collection Design: Bagless system with a removable dust bin; optional dust-bin bags are available in 10-packs under part number 97002.

Included Hose: One 63.5 mm diameter × 1,829 mm long suction hose (2.5 in diameter × 6 ft long).

Automatic Control: Built-in AutoPilot enables automatic on/off control through a compatible micromotor handpiece or small lathe.

AutoPilot Display: Digital display provides AutoPilot operating readout.

Filter Cleaning: Push-button electric filter-cleaning system.

Workstation Capacity: Base configuration supports one workstation; optional two-station configurations are available.

Optional Pre-Filter: Compatible with an optional cyclone accumulator for additional particulate separation before primary filtration.

Compatible Materials: Stone, zirconia, gypsum, precious metals, ceramics, porcelain, acrylic, quartz, alloys, sandblasting abrasive, and other dry laboratory materials.

Warranty: One-year unit warranty with a six-month motor warranty.
