Product Information

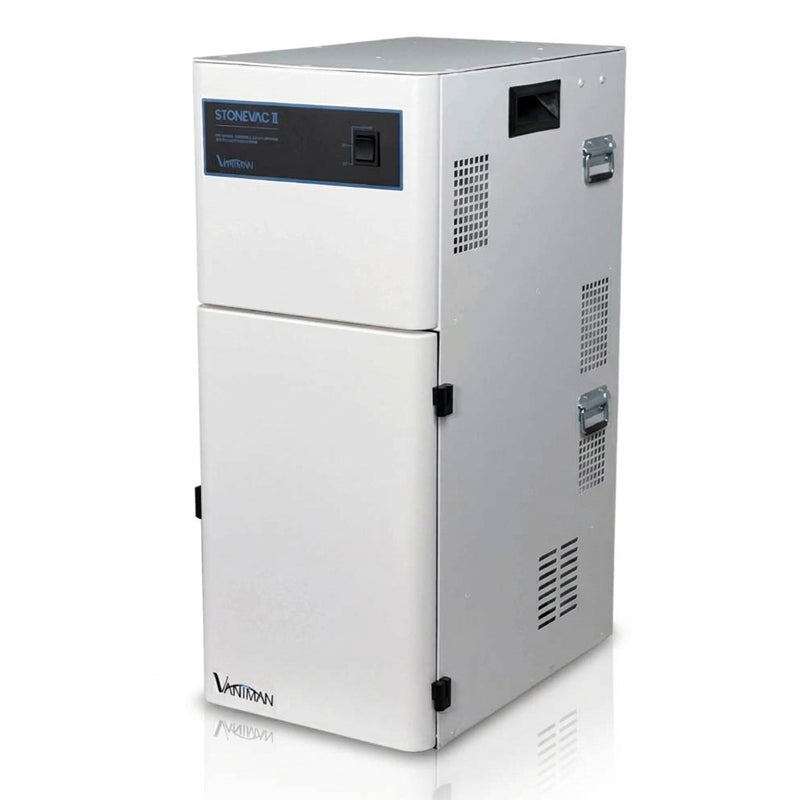

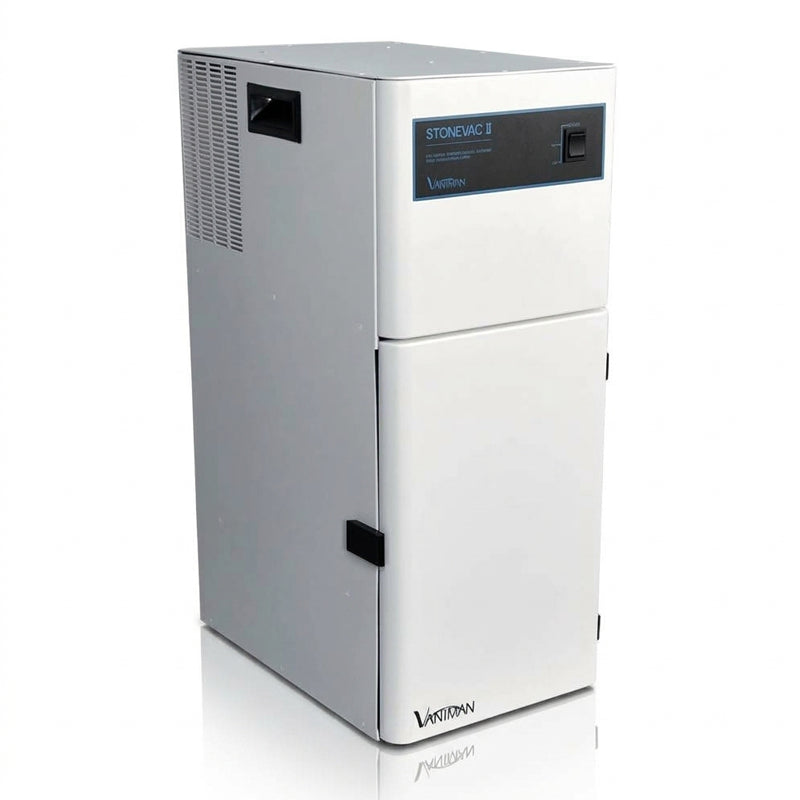

The Vaniman StoneVac II from 3DNA Dental is a high-volume dental laboratory dust collector engineered to capture heavy dry materials generated during grinding, trimming, micro-abrasive blasting, and CAD/CAM workflows. Its powerful turbine motor and HEPA-grade filtration make it well suited for die stone, gypsum, acrylic, porcelain, zirconia, ceramics, quartz, alloys, sandblasting media, and other dry laboratory particulates. Designed for one or two workstations, this bagless dental dust collection system helps maintain a cleaner, more efficient workspace in dental laboratories, jewelry studios, and precision manufacturing environments.
The StoneVac II combines reliable suction with practical maintenance features for demanding daily use. A removable dust bin, easy-access door, push-button electric filter cleaner, and replaceable HEPA cartridge simplify routine upkeep, while quiet 57 dBA operation helps support a more comfortable laboratory setting. The unit includes a 63.5 mm × 1,829 mm (2.5 in × 6 ft) suction hose and can be configured with an optional cyclone accumulator pre-filter to capture heavy particulate before it reaches the primary filter.
Features & Benefits:
High-Volume Dust Collection: The powerful, long-lasting turbine motor is designed to collect heavier dry dust and particulate from one or two dental laboratory workstations.
HEPA-Grade Filtration: The filtration system captures 99.97% of dust particles at 0.3 microns to support fine-particle control during laboratory procedures.
Bagless Collection Design: The removable dust bin eliminates routine collection-bag changes and allows convenient disposal of collected dry debris.
Push-Button Filter Cleaning: The built-in electric filter-cleaning system helps dislodge accumulated debris from the HEPA cartridge to support consistent suction performance.
Quiet, Maintainable Operation: Operating at 57 dBA, the StoneVac II combines low-noise performance with an easy-access door and serviceable components for straightforward maintenance.
Technical Specifications:
Model: Vaniman StoneVac II 10201.
System Type: High-volume, bagless dental laboratory dust collector for one or two workstations.
Overall Dimensions: 254 mm wide × 381 mm long × 622 mm high (10 in wide × 15 in long × 24.5 in high).
Weight: 24.9 kg (55 lb).
Motor Type: Powerful, long-lasting turbine motor.
Noise Level: 57 dBA.
Filtration Type: Replaceable HEPA filter cartridge, part number 97001.
Filtration Performance: Captures 99.97% of dust particles at 0.3 microns.
Dust Collection Design: Bagless system with a removable dust bin; optional dust-bin bags are available in 10-packs under part number 97002.
Included Hose: One 63.5 mm diameter × 1,829 mm long suction hose (2.5 in diameter × 6 ft long).
Filter Cleaning: Push-button electric filter cleaner.
Workstation Capacity: Designed for one or two workstations; a two-station kit is available as an accessory.
Optional Pre-Filter: Compatible with an optional cyclone accumulator pre-filter for heavy particulate separation.
Compatible Materials: Acrylic, gypsum, die stone, alloy, quartz, ceramics, zirconia, sandblasting abrasive, and other dry dental laboratory materials.
Warranty: One-year unit warranty with a six-month motor warranty.
