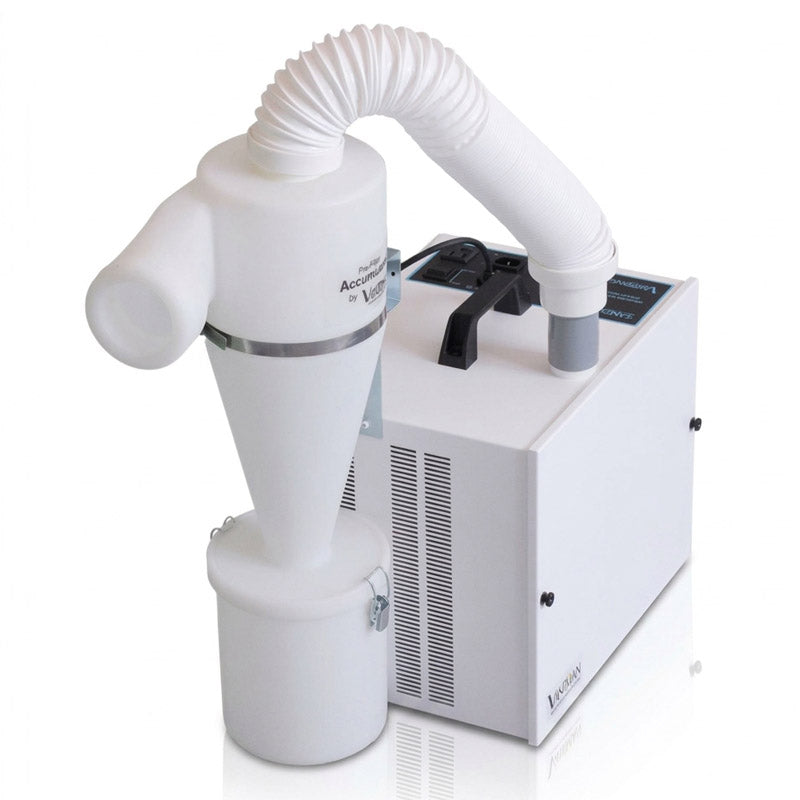

Vaniman SandVac

The Vaniman SandVac from 3DNA Dental is a compact, single-station dental dust collector designed specifically for micro-abrasive sandblasters. Built for dental laboratories and clinical work areas, this powerful sandblaster vacuum uses a long-life bypass motor to capture abrasive media and dust generated during dry laboratory procedures. Its quiet 55 dBA operation and space-saving footprint make it an effective dust-collection solution for laboratories working with acrylic, gypsum, die stone, alloy, quartz, ceramics, zirconia, sandblasting abrasive, and other dry dental materials.

The SandVac dental dust collection system includes a cyclone accumulator pre-filter that captures 95% of dust and 99% of abrasive media before it reaches the filter bag, helping extend filter life and protect internal components. A foot-operated remote provides hands-free start and stop control, while the integrated power outlet can activate a connected sandblaster’s LED light at the same time. The unit is compatible with Vaniman dental sandblasters and with most blasters using standard 63.5 mm or 38.1 mm (2.5 in or 1.5 in) dust-collection ports; adapters are available for additional compatibility.

Quiet, Powerful Dust Collection: The long-life bypass motor delivers strong suction for micro-abrasive blasting applications while operating at a quiet 55 dBA.

Cyclone Pre-Filter Protection: The included accumulator pre-filter captures 95% of dust and 99% of abrasive media, helping extend filter-bag life and reduce maintenance needs.

Hands-Free Foot Control: The included foot remote allows convenient on/off operation without interrupting sandblasting workflows.

Integrated Workstation Power: The built-in electrical outlet can activate a connected sandblaster LED light when the dust collector is switched on.

Broad Sandblaster Compatibility: The SandVac works with Vaniman sandblasters and most units with standard 63.5 mm or 38.1 mm (2.5 in or 1.5 in) dust-collection ports.

Model: Vaniman SandVac 10211.

System Type: Compact, single-station dust collector designed for dental sandblaster units.

Overall Dimensions: 362 mm × 273 mm × 343 mm (14.25 in × 10.75 in × 13.5 in).

Weight: 19.5 kg (43 lb).

Noise Level: 55 dBA.

Motor Type: Powerful, long-life bypass motor designed for sandblaster dust collection.

Pre-Filter System: Included VMC-A300 cyclone accumulator pre-filter captures 95% of dust and 99% of abrasive media.

Replacement Filter: VMC-A400 filter bags; 3-pack and 5-pack replacement options are available.

Remote Control: Included foot-operated remote on/off control.

Integrated Power Outlet: Built-in outlet supports activation of a connected sandblaster LED light.

Included Hose Configuration: One 63.5 mm × 914 mm (2.5 in × 3 ft) hose with a 38.1 mm (1.5 in) hose end and one 63.5 mm × 1,829 mm (2.5 in × 6 ft) hose with a 38.1 mm (1.5 in) hose end.

Included Components: SandVac unit, power cord, foot remote, VMC-A300 pre-filter/accumulator, and two collection hoses.

Compatible Materials: Acrylic, gypsum, die stone, alloy, quartz, ceramics, zirconia, sandblasting abrasive, and other dry dental laboratory materials.

Warranty: One-year manufacturer warranty, including a six-month motor warranty.
