Product Information
Features and Benefits
Multi-Stage HEPA and Charcoal Filtration: The HEPA filter captures 99.97% of particulates down to 0.3 microns, while the charcoal filter helps reduce odors and adsorb selected chemical vapors.
High-Suction Motor with Four-Speed Control: A powerful turbine motor and four adjustable speed settings let you tailor fume extraction to your project.
Flexible Source-Capture Hose: Position the flexible hose and removable capture mouth close to soldering or micro-welding fumes for targeted extraction at the source.
Quiet, Hands-Free Operation: Sound-dampening technology delivers a manufacturer-listed noise level of 54 dBA, while the foot pedal allows convenient start/stop control without interrupting detailed work.
Portable, Durable Construction: Sturdy casters make the extractor easy to move between workstations, and the steel casing provides durability for everyday workshop use.
High-Suction Motor with Four-Speed Control: A powerful turbine motor and four adjustable speed settings let you tailor fume extraction to your project.
Flexible Source-Capture Hose: Position the flexible hose and removable capture mouth close to soldering or micro-welding fumes for targeted extraction at the source.
Quiet, Hands-Free Operation: Sound-dampening technology delivers a manufacturer-listed noise level of 54 dBA, while the foot pedal allows convenient start/stop control without interrupting detailed work.
Portable, Durable Construction: Sturdy casters make the extractor easy to move between workstations, and the steel casing provides durability for everyday workshop use.
Product Description

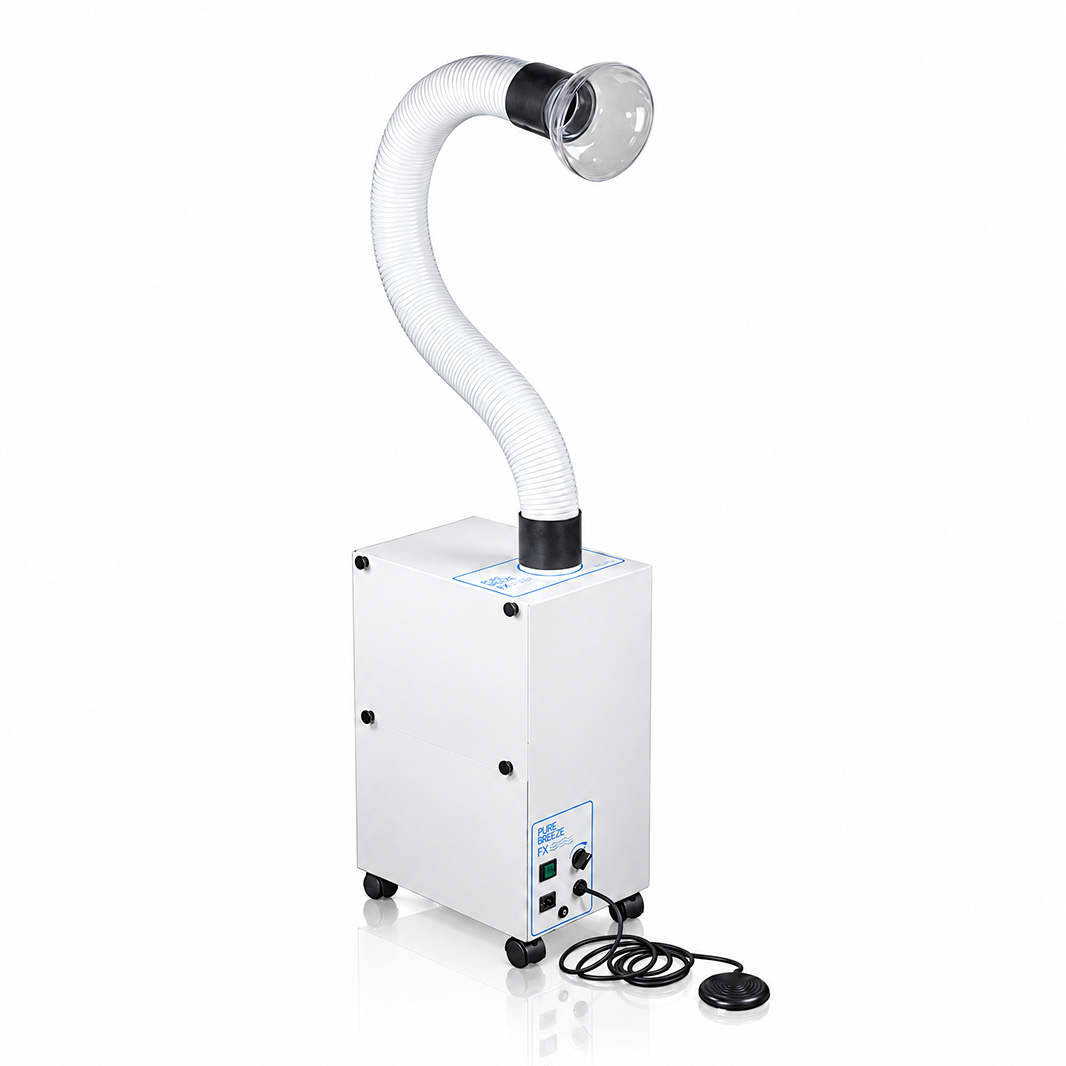

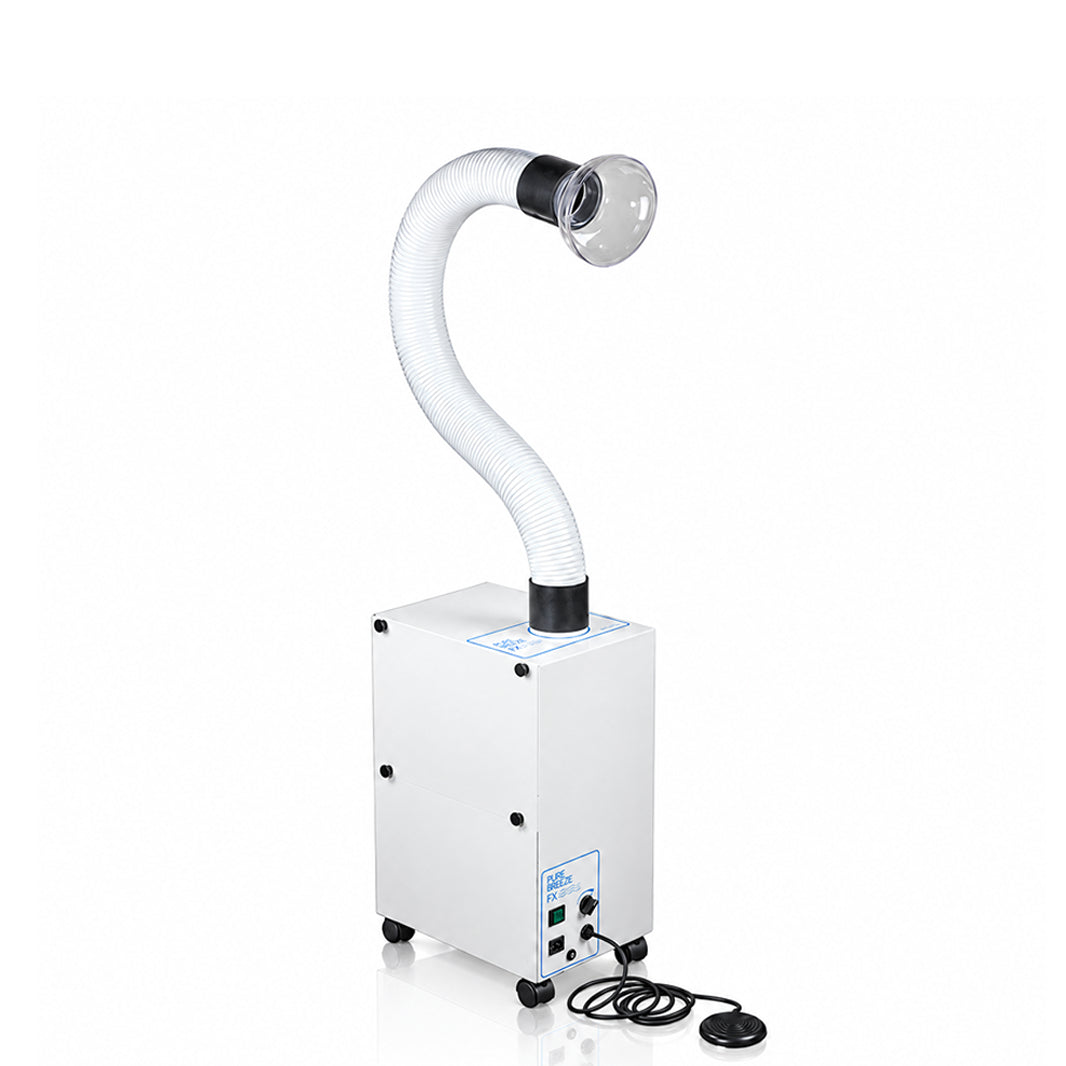

The Vaniman Pure Breeze FX HEPA Fume Extractor, model 10380, provides portable, source-focused fume extraction for soldering, micro-welding, and other small-scale projects. Its high-suction turbine motor draws fumes through a flexible capture hose into a multi-stage filtration system. The HEPA filter captures fine airborne particulates, while the charcoal odor filter helps reduce odors and selected chemical vapors for a cleaner, more comfortable workspace.
Designed for professionals and hobbyists, this portable soldering fume extractor combines four-speed adjustment, quiet 54 dBA operation, and hands-free foot-pedal control. A removable capture mouth simplifies positioning, while sturdy casters and a durable steel enclosure make it practical to share between workstations. Each unit is hand-assembled in the USA and quality-tested before shipping. Charcoal filtration performance varies by compound, fume volume, and extraction setup; not all gases or vapors are removed.
Technical Specifications
Brand: Vaniman
Product Name: Pure Breeze FX HEPA Fume Extractor
Model / SKU: 10380
Applications: Soldering, micro-welding, and small projects producing fine aerosols or fumes; not suitable for direct liquid suction or collection of large particulates.
Filtration System: Internal HEPA filter and charcoal odor filter.
HEPA Filtration Efficiency: Captures 99.97% of particulates down to 0.3 microns; manufacturer-stated equivalent to MERV 17.
Motor: High-suction turbine motor.
Speed Settings: Four adjustable speeds.
Noise Level: 54 dBA, as listed by the manufacturer.
Electrical Requirements: 115 V AC, 60 Hz; maximum current usage of 15 A, as specified in the operating manual.
Manufacturer-Listed Dimensions: 431.8 × 431.8 × 431.8 mm / 17 × 17 × 17 inches.
Manufacturer-Listed Weight: 16.33 kg / 36 lb.
Housing and Mobility: Steel casing with four caster wheels.
Capture Attachment: Flexible capture hose with removable nozzle.
Controls: On/off switch, speed adjustment, and foot-operated start/stop remote.
Included Components: Fume extractor, capture hose, nozzle, power cord, four caster wheels, and foot remote/bellows.
Replacement Filters: HEPA filter, part 96097; charcoal odor filter, part 97095.
Assembly: Hand-assembled and quality-tested in the USA.
