Product Information

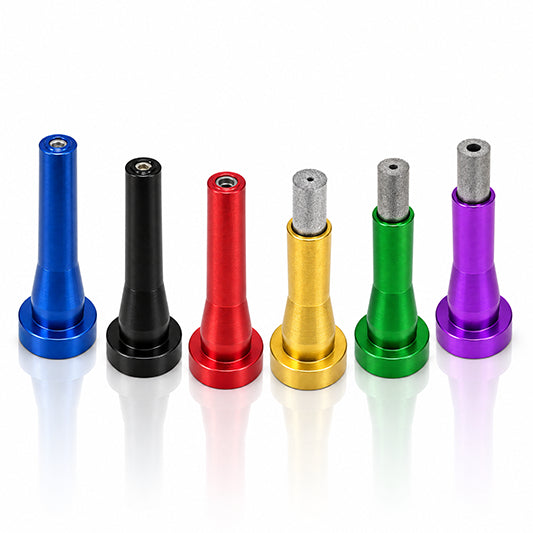

Vaniman blasting tips from 3DNA Dental. The ultra-hard Sapphire Crystal tips are long lasting and provide a general spray pattern. The ultra-precision Tungsten Carbide tips gives the user the ultimate in spray pattern control.

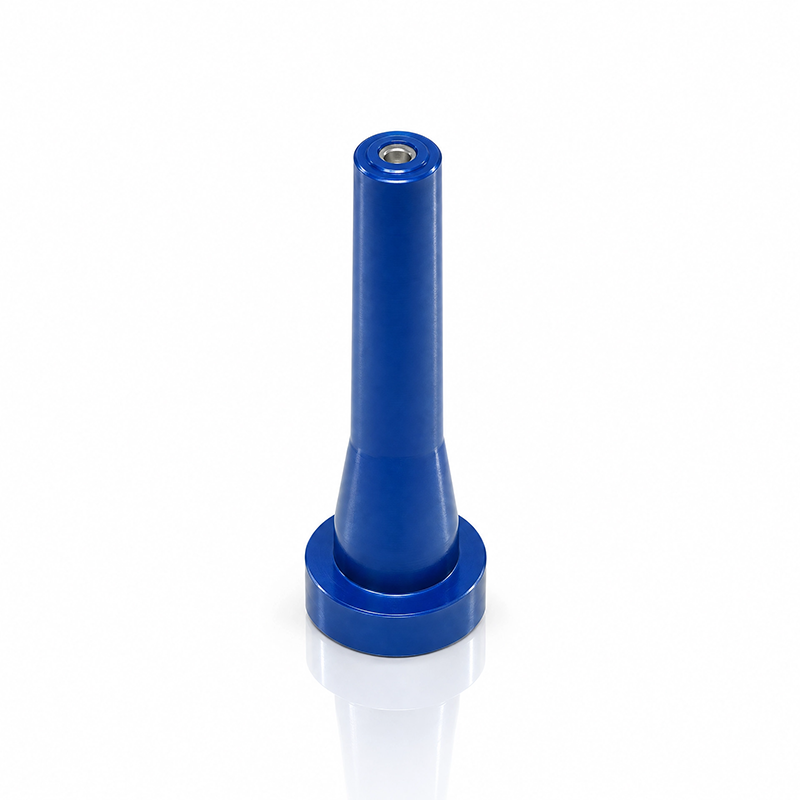

Embedded Sapphire Crystal Blasting Tip
Size & Color Code: Medium, Blue
Nozzle Size: ⌀0 .032″ (⌀0.8 mm)
Recommended Media: 24µm Al₂O₃ (320-230 grit) & 50µm Al₂O₃ (240 grit)
Packaged: 2 Tips & 2 O-Rings per pack
SKU: 97902
Recommended Tank Media Size: 25 micron, SKU: 97956 & 50-100 micron SKU: 97957
Embedded Sapphire Crystal Blasting Tip
Size & Color Code: Large, Black
Nozzle Size: ⌀0.048″ (⌀1.2 mm)
Recommended Media: 50µm Al₂O₃ (240 grit), 50µm glass bead (240 grit) &
100µm Al₂O₃ (100-120 grit)
Packaged: 2 Tips & 2 O-Rings per pack
SKU: 97903
Recommended Tank Media Size: 25 micron, SKU: 97956
Embedded Sapphire Crystal Blasting Tip
Size & Color Code: Extra Large, Red
Nozzle Size: ⌀0.065″ (⌀1.6 mm)
Recommended Media: 100µm Al₂O₃ (100-120 grit) & 250µm Al₂O₃ (60 grit)
Packaged: 2 Tips & 2 O-Rings per pack
SKU: 97904
Recommended Tank Media Size: 110-250 micron, SKU: 97958
Embedded Tungsten Carbide Blasting Tip
Size & Color Code: Small, Yellow
Nozzle Size: ⌀0.025″ (⌀1.6 mm)
Recommended Media: 25µm Al₂O₃ (320-360 grit)
Packaged: 1 Tip & 1 O-Ring per pack
SKU: 97905
Recommended Tank Media Size: 25 micron, SKU: 97956
Embedded Tungsten Carbide Blasting Tip
Size & Color Code: Medium, Green
Nozzle Size: ⌀0.036″ (⌀0.91 mm)
Recommended Media: 50µm glass bead (240 grit), 100µm Al₂O₃ (100-120 grit) &
50µm glass bead (240 grit)
Packaged: 1 Tip & 1 O-Ring per pack
SKU: 97906
Recommended Tank Media Size: 50-100 micron, SKU: 97957
Embedded Tungsten Carbide Blasting Tip
Size & Color Code: Large, Violet
Nozzle Size: ⌀0.059″ (⌀1.5 mm)
Recommended Media: 100µm Al₂O₃ (100-120 grit) & 250µm Al₂O₃ (60 grit)
Packaged: 1 Tip & 1 O-Ring per pack
SKU: 97907
Recommended Tank Media Size: 110-250 micron, SKU: 97958a
