Product Information
Features and Benefits
Powerful Extraoral Aerosol Suction: A high-suction turbine motor captures dental aerosols near the patient’s mouth, supporting chairside aerosol management during aerosol-generating procedures.
Two-Stage HEPA Filtration: A pre-filter captures 97% of particles at 1 micron, while the HEPA filter captures 99.97% at 0.3 microns, helping reduce airborne particulate released back into the operatory.
Quiet, Adjustable Performance: Four speed settings let clinicians adjust suction to the procedure, with operating noise as low as 50 dBA and approximately 54 dBA on high.
Hands-Free Chairside Operation: The included foot-operated on/off control and flexible collection hose allow convenient activation and precise positioning without interrupting treatment.
Portable, Easy-to-Maintain Design: Four durable casters make the unit easy to reposition between operatories, while replaceable filters and a removable, disinfectable capture mouth simplify routine maintenance.
Powerful Extraoral Aerosol Suction: A high-suction turbine motor captures dental aerosols near the patient’s mouth, supporting chairside aerosol management during aerosol-generating procedures.
Two-Stage HEPA Filtration: A pre-filter captures 97% of particles at 1 micron, while the HEPA filter captures 99.97% at 0.3 microns, helping reduce airborne particulate released back into the operatory.
Quiet, Adjustable Performance: Four speed settings let clinicians adjust suction to the procedure, with operating noise as low as 50 dBA and approximately 54 dBA on high.
Hands-Free Chairside Operation: The included foot-operated on/off control and flexible collection hose allow convenient activation and precise positioning without interrupting treatment.
Portable, Easy-to-Maintain Design: Four durable casters make the unit easy to reposition between operatories, while replaceable filters and a removable, disinfectable capture mouth simplify routine maintenance.
Product Description

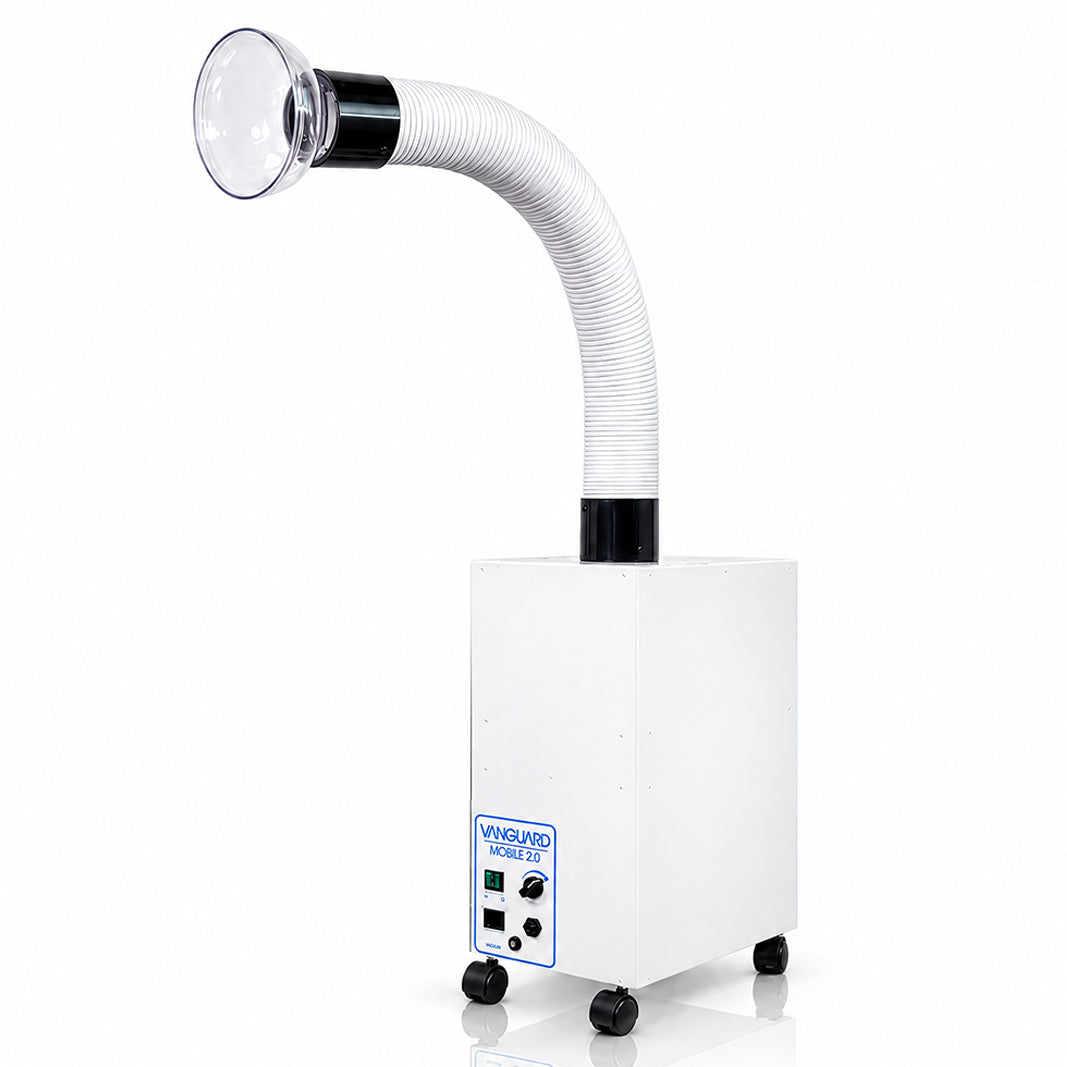

The Vaniman Vanguard Mobile 2.0 Extraoral Dental Suction System is a portable chairside dental aerosol vacuum designed to capture airborne particles during aerosol-generating procedures. Its powerful turbine motor, four adjustable speed settings, and two-stage filtration system provide targeted aerosol collection for dental offices. The HEPA filter captures 99.97% of particles at 0.3 microns, while the pre-filter captures larger particulate to support effective filtration.
Assembled in Southern California, the Vanguard Mobile 2.0 combines quiet operation with a compact, mobile design that fits easily into dental operatories. A flexible capture hose, removable collection mouth, and included foot-operated switch support convenient hands-free use. Position the capture mouth within 152.4 mm (6 inches) of the patient’s mouth for optimal collection. Backed by a one-year manufacturer warranty and Vaniman technical support, this extraoral suction unit complements existing chairside aerosol-control measures.
Technical Specifications
Manufacturer: Vaniman
Product Name: Vanguard Mobile 2.0 Extraoral Dental Suction System
Part Number: 10337
Base Unit Dimensions: Length 356 mm (14 inches) × width 254 mm (10 inches) × height 546 mm (21.5 inches), excluding casters and flexible capture hose.
Unit Weight: 17.7 kg (39 lb)
Capture Hose Length: Approximately 1,219.2 mm (48 inches)
Recommended Capture Position: Within 152.4 mm (6 inches) of the patient’s mouth.
Motor Type: High-suction turbine motor.
Speed Control: Four adjustable speed settings.
Operating Noise: 50–54 dBA; approximately 54 dBA at high speed.
Electrical Supply: Standard unit: 115 V AC, 60 Hz. Optional 220/240 V configurations are listed by the manufacturer.
Maximum Current: 15 A for the standard 115 V unit, according to the operating manual.
Stage 1 Pre-Filter: 97% filtration efficiency at 1 micron.
Stage 2 HEPA Filter: 99.97% filtration efficiency at 0.3 microns; described by the manufacturer as equivalent to MERV 17.
Mobility: Four rolling casters.
On/Off Controls: Unit-mounted switch and included foot-operated control.
Capture Mouth Care: Removable for cleaning and disinfection; not autoclavable.
Recommended Filter Maintenance: Inspect the pre-filter approximately every three months. Inspect the HEPA filter every six months and replace sooner if suction becomes restricted.
Optional Odor Filtration: External activated-charcoal exhaust filter, available separately.
Intended Use: Extraoral collection of fine dental aerosols; not suitable for direct liquid suction.
Country of Assembly: United States.
Warranty: One-year manufacturer warranty.
