Features & Benefits
- High-Temperature Precision – Achieve accurate and stable heating up to 1300°C for consistent material processing results.
- Controlled Atmosphere Capability – Integrated gas flow and vacuum options enable safe sintering of sensitive materials.
- Energy-Efficient & Durable Design – Alumina fiber insulation and double-shell construction improve efficiency while extending equipment lifespan.

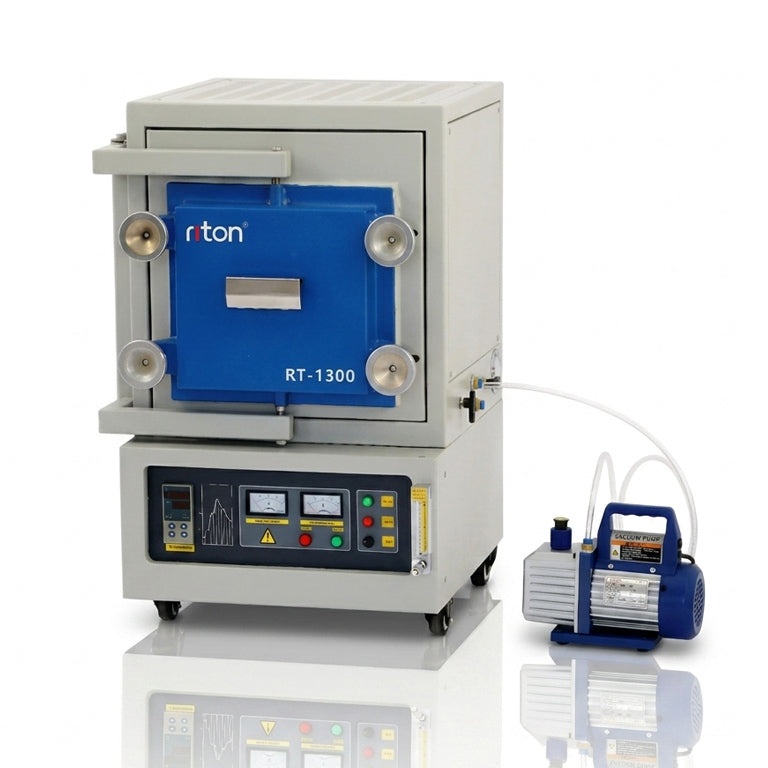

The RT-1300 Box-Type Atmosphere Muffle Furnace is a high-performance thermal processing solution engineered for precision sintering and heat treatment applications in laboratories, universities, and industrial environments. Designed with a robust double-shell structure and advanced fan cooling system, this furnace ensures consistent temperature stability and safe operation at up to 1300°C, with continuous working temperatures reaching 1200°C. Its alumina fiber chamber enhances thermal efficiency while reducing energy consumption, and the integrated atmosphere control system allows for protective gas environments, making it ideal for sensitive material processing. With user-friendly digital controls, optional touchscreen interface, and comprehensive safety protections, the RT-1300 delivers reliable, high-quality results for demanding thermal applications.
Technical Specifications
- Maximum Temperature: 1300°C
- Continuous Working Temperature: 0–1200°C
- Heating Rate: Up to 30°C/min
- Power Supply: AC 220V
- Maximum Power: 9 kW
- Chamber Size: 200 × 300 × 200 mm (W × D × H)
- Chamber Material: Alumina fiber
- Furnace Structure: Double shell with fan cooling
- Display: LED digital display (optional touchscreen)
- Atmosphere Control: Multiple gas inlets with needle valves and flow meters
- Vacuum Capability: Optional vacuum pump (mechanical pump)
- Sealing System: Silica gel embedded, tightly sealed furnace door
- Safety Features: Over-temperature, over-current, load protection, thermocouple failure warning
- Warranty: 1-year warranty with lifetime service support
