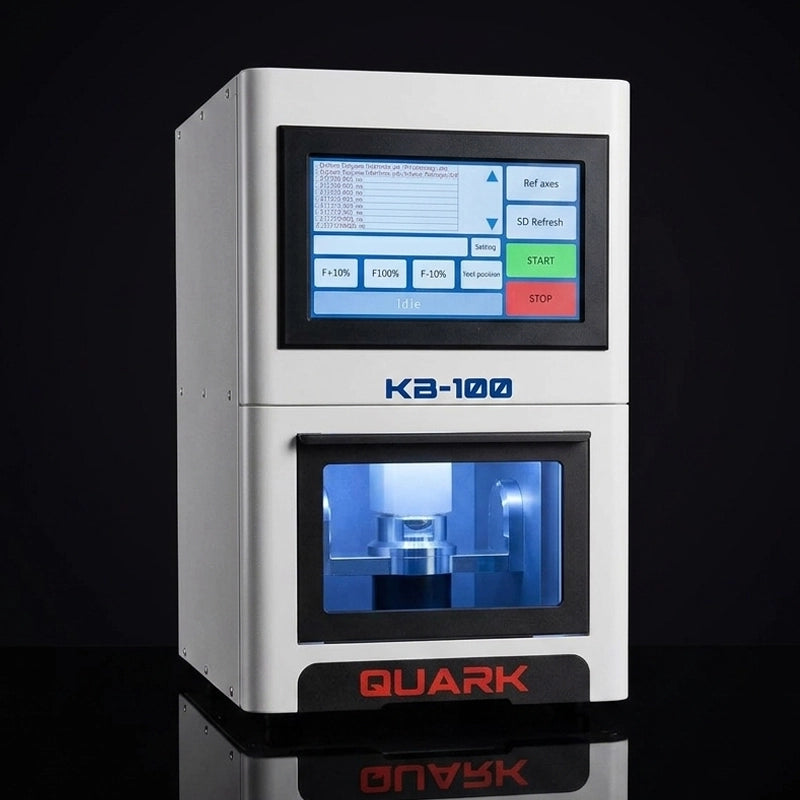

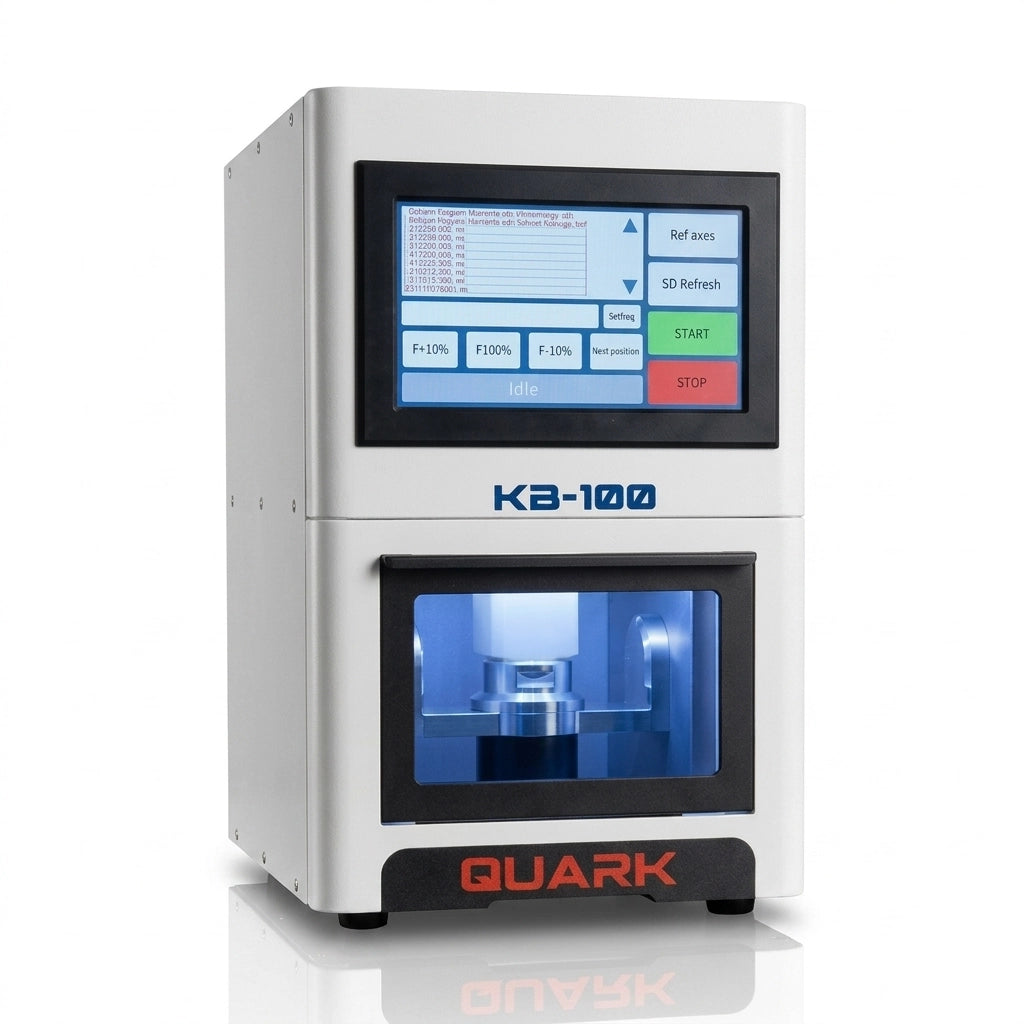

QUARK KB-100 Mini Trimming Machine

Name: QUARK KB-100 Mini Trimming Machine
Brand: 3DNA Dental
SKU: 48065892909314
Price: 18500.00 USD
Availability: InStock

$18,500.00

Product Information

Features and Benefits

Ultra-Fast 25-Second Trimming
Dramatically increase your clinic or lab's productivity with an exceptional trim speed of just 25 seconds per model, saving valuable time and reducing turnaround for patients.

Intelligent Software Integration
Seamlessly connect with your existing treatment plan software. The KB-100 adapts trimlines automatically and executes G-code in batch processes, streamlining your workflow with simple QR code integration.

Flawless Finishing with Zero Running Costs
Achieve amazing, smooth finishes that require minimal to no polishing (especially on a fresh burr). Combined with zero ongoing running costs beyond burr replacement, this machine maximizes your return on investment.

Product Description

Upgrade your dental clinic or small laboratory with the KB-100 Mini Trimming Machine, the most cost-effective 5-axis trimming solution on the market. Engineered for speed, precision, and ease of use, this compact powerhouse can trim a model in an astonishing 25 seconds. Whether you are processing aligners, retainers, nightguards, or sportsguards, the KB-100 handles material thicknesses up to 4mm with ease. Its intelligent software seamlessly integrates with various treatment planning platforms, adapting trimlines and executing batch processes effortlessly via a simple QR code system.

Designed with your bottom line in mind, the KB-100 delivers amazing finishing quality that requires minimal to no polishing, saving you both time and labor. The user-friendly interface ensures that any staff member can operate the machine without specialized training. Furthermore, apart from occasional burr replacements, the KB-100 boasts zero running costs, making it an incredibly economical choice for growing practices. Invest in the KB-100 Mini Trimming Machine today to experience small, fast, and precise automated trimming that elevates your workflow and patient care.

Questions and Anwsers

Q: Does the aligner need to be polished after trimming?
A: Very minimal polishing needed after cuts. On a fresh burr, no polishing is needed at all.

Q: How many aligners can be produced each day?
A: About 300 pc per day (8 hours)

Q: Can you provide customized fixture to match different thermoform machines and 3D printer?
A: No, we only design fixtures for KA-200 and match the accuracy of 3D printer. KA-120 and KB-100 must use our standard fixture.

Q: How long is the tool duration?
A: Depends on the material, the thickness and resin.

Q: Does KB-100 need vacuum or air compressor?
A: KB-100 doesn't need air compressor or vacuum.

Technical Specifications

Machine Type: 5-Axis Mini Trimming Machine

Trim Speed: 25 seconds per model

Maximum Material Thickness: Up to 4 mm (0.16 in)

Supported Applications: Aligners, retainers, nightguards, sports guards, etc.

Software Compatibility: Works with various treatment plan software; adapts trimlines for batch G-code execution

Workflow Integration: QR Code enabled

Running Costs: None (excluding standard burr replacement)

Physical & Power Specifications

Dimensions: 324 × 457 × 532 mm (12.8 × 18.0 × 20.9 in)

Machine Weight (Net): Approximately 50 kg (110.2 lbs)

Power Supply: 230/115VAC, 50/60Hz Adapter

Power Input: 500 W

Spindle & Motion Specs

Spindle Speed: 24,000 rpm

Spindle Power: 250 W

Travel (X-axis): 80 mm (3.15 in)

Travel (Y-axis): 80 mm (3.15 in)

Travel (Z-axis): 80 mm (3.15 in)

Travel (B-axis): +100° / -30°

Travel (C-axis): ±Infinity

Max Axis Speed: 3,000 mm/min (118.1 in/min)

Standard Size Collet: 3.175 mm (1/8 in / 0.125 in)

Data Interface: SD card

Software: Open Source, no software included
