Product Information
Features & Benefits
Ultra-Fast Precision Trimming
Powered by a high-speed 30,000 rpm spindle and precise harmonic driver, the KA-120 trims each clear aligner in under 30 seconds. This drastically reduces production time while ensuring clean, smooth cuts that require minimal to no polishing, maximizing your daily output to 300-400 pieces.
Powered by a high-speed 30,000 rpm spindle and precise harmonic driver, the KA-120 trims each clear aligner in under 30 seconds. This drastically reduces production time while ensuring clean, smooth cuts that require minimal to no polishing, maximizing your daily output to 300-400 pieces.
Cost-Effective "One Click" Software Solution
Includes the patented Matchstick® CAD/CAM software at no extra cost. This powerful tool automatically generates trimlines, G-code, and QR codes in batch processing, eliminating the need for expensive third-party CAM software and simplifying your workflow to save both time and money.
Includes the patented Matchstick® CAD/CAM software at no extra cost. This powerful tool automatically generates trimlines, G-code, and QR codes in batch processing, eliminating the need for expensive third-party CAM software and simplifying your workflow to save both time and money.
Compact & User-Friendly Desktop Design
With a footprint of just 400x568mm, this industrial-performance machine fits perfectly in any clinic or chair-side laboratory. It features an integrated QR code reader for quick job loading and a built-in dust collection drawer, making operation clean, reliable, and incredibly easy for any user.
With a footprint of just 400x568mm, this industrial-performance machine fits perfectly in any clinic or chair-side laboratory. It features an integrated QR code reader for quick job loading and a built-in dust collection drawer, making operation clean, reliable, and incredibly easy for any user.
Product Description

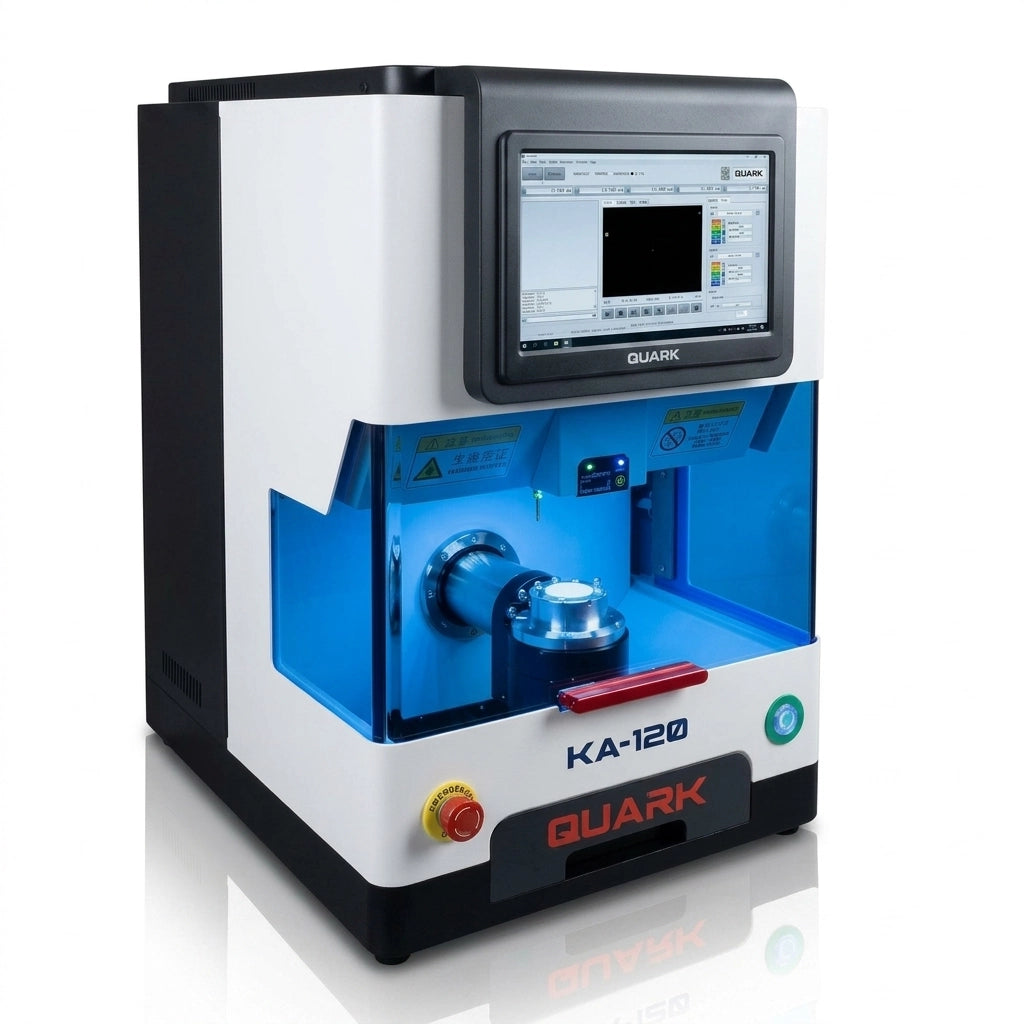

Upgrade your clear aligner production with the KA-120 Desktop Trimming Machine, a compact yet powerful solution designed specifically for clinics and chair-side orthodontists. Engineered for industrial performance within a space-saving 400x568mm footprint, the KA-120 delivers unmatched speed and accuracy. Driven by robust AC servo motors and a high-torque 400W spindle reaching 30,000rpm, it effortlessly trims aligners, hooks, and cutouts in under 30 seconds. The precise harmonic driver ensures such clean edges that minimal or no post-trimming polishing is required, allowing you to comfortably produce 300 to 400 aligners per day.
What truly sets the KA-120 apart is its seamless, cost-effective workflow. The machine comes fully equipped with the patented Matchstick® software, a "One Click Solution" that automatically handles batch fixture adding, trimline generation, and QR code creation without the need for additional, expensive CAM software. Simply scan the generated QR code with the machine's built-in reader, and the KA-120 instantly uploads the G-code to begin precise trimming. Complete with a convenient dust collection drawer and remote technical support, the KA-120 is the ultimate user-friendly, high-efficiency investment for scaling your orthodontic practice.
Technical Specifications
•Spindle Speed: 30,000 rpm
•Spindle Power: 400 W
•Travel (X, Y, Z axis): 180 mm (X), 120 mm (Y), 80 mm (Z)
•Travel (B, C axis): +120°/-40° (B), ±infinity (C)
•Max Axis Speed: 4000 mm/min
•Standard Size Collet: 3.175 mm
•Data Interface: USB 3.0 / RJ-45 Ethernet
•Power Input: 1.0 KW
•Adapter Power Supply: 230VAC, 50/60Hz
•Air Requirement: 120 L/min, 0.5-0.7 Mpa
•Dimensions: 400 mm × 568 mm × 626 mm
•Net Weight: ≈ 110 kg
•Included Software: Matchstick® CAD/CAM software (One Click Solution)
•Production Capacity: 300 - 400 pcs/day (8 hours)
•Additional Features: Built-in QR code reader, dust collection drawer
