Product Information
Features & Benefits
Explosion and dust ignition proof certified design: The EXP1-10 is legally certified by an OSHA approved Nationally Recognized Testing Laboratory (NRTL) and carries third-party ATEX certification for combustible dust collection. This helps facilities source a purpose built explosion proof industrial vacuum for controlled medical, dental, and 3D-printing housekeeping applications.
HEPA equipped configuration for fine dust workflows: Identified by Tiger-Vac as a HEPA Mini Series model, this compact electric vacuum is a strong fit for routine medical and dental 3D printer cleaning where dependable particulate collection is a priority.
Complete static dissipative 3D tool kit: A supplied static dissipative tool kit supports more convenient cleanup and maintenance around 3D printing equipment, while the four-wheel dolly and 15 m cord make the unit easier to position in the work area.
Product Description

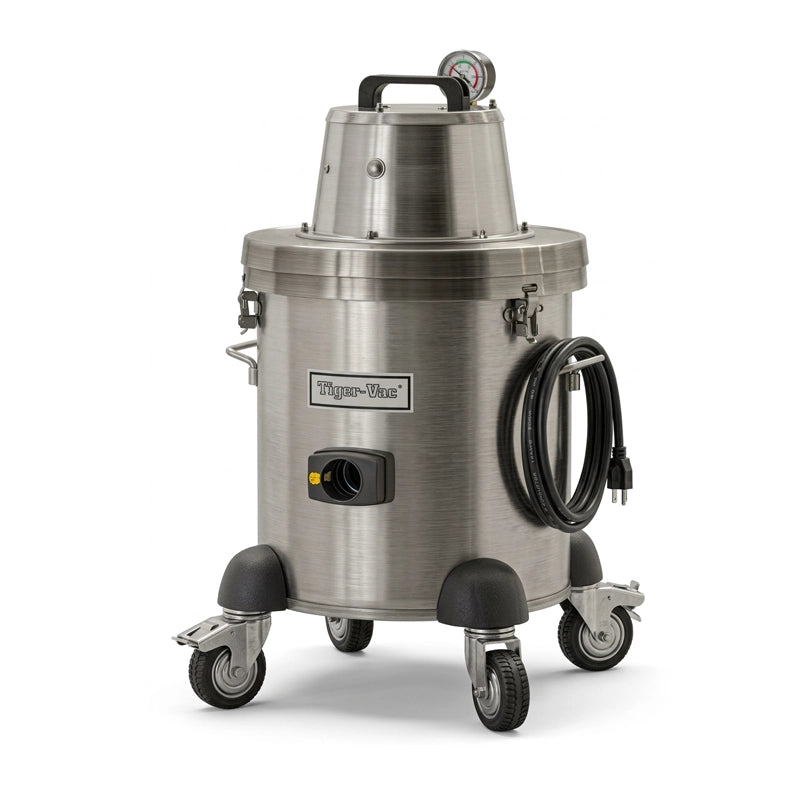

The Tiger-Vac EXP1-10 (40L) HEPA with 3D Tool Kit is an explosion and dust ignition proof electric industrial vacuum engineered for medical, dental, and 3D-printing cleaning and maintenance. This 230 V, single-phase HEPA Mini Series model combines a 1 kW TEFC motor with 224 m³/h airflow and 1,550 mm H₂O vacuum pressure, delivering practical performance for controlled combustible-dust housekeeping tasks. Its ATEX third-party certification and NRTL-certified explosion-proof/dust ignition proof construction make it a specialized choice for operations requiring an appropriately certified vacuum solution.
Built for workcell mobility, the EXP1-10 uses a four-wheel dolly, compact 48 × 46 × 86 cm footprint, 38 mm suction inlet, and 15 m power cord. The included static dissipative 3D tool kit gives medical laboratories, dental labs, and additive manufacturing teams the accessories needed to clean around equipment with greater convenience. Choose the Tiger-Vac EXP1-10 HEPA industrial vacuum for a purpose built solution that pairs certified hazardous location protection with the practical features needed for 3D printer maintenance.
Technical Specifications
•Manufacturer / model: Tiger-Vac EXP1-10 (40L) HEPA Mini Series with 3D Tool Kit
•Part number: 113151B
•Type: Electric industrial vacuum
•Motor: TEFC motor
•Electrical supply: 230 V, 50 Hz, single phase
•Power: 1,000 W (1 kW)
•Amperage: 4.5 A
•Airflow: 224 m³/h
•Vacuum pressure: 1,550 mm H₂O
•Sound level: 79 dB(A), per EN ISO 11203
•Suction inlet port: 38 mm
•Cart configuration: Four-wheel dolly (4W)
•Dimensions (L × W × H): 48 × 46 × 86 cm
•Cord length: 15 m
•Power outlet: Not included
•Included accessory: Complete static-dissipative 3D tool kit
•Certifications / classification: ATEX 3rd-party certified, 0081 II 2GD Ex d IIA T3 Gb; Ex t IIIC T200°C Db IP6X; operating ambient temperature −5°C to +37°C; EN 17348 DT; combustible-dust collection
Specifications are listed for the manufacturer’s Europe/Asia configuration and are subject to change without notice.
CLEANING MACHINES For Hazardous Locations (Classes C1618 01 & C1618 81)
Class I, Division 1, Division 2, Group D, T3C and Class II, Division 1, Division 2, Groups E, F and G
CLEANING MACHINES For Hazardous Locations (Classes C1618 01 & C1618 81)
Class I, Division 1, Division 2, Group D, T3C and Class II, Division 1, Division 2, Groups E, F and G
GUARANTEED for the Safe Recovery of Combustible/Conductive Dusts
Complies with NFPA 77 "Recommended Practice on Static Electricity"
