Product Information
Download
The FotoDent® Compatibility Matrix
This document shows which resins are compatible with your printer.
Features and Benefits
Biocompatible dental resin supports the fabrication of custom individual impression trays.
High reactivity enables faster, efficient printing for busy dental laboratories.
Low viscosity improves resin handling, cleaning, and post-processing efficiency.
Smooth, homogeneous tray surfaces reduce the time required for manual finishing.
Product Description
Layer heights up to 0.30 mm (0.012 in) support fast production while preserving reliable mechanical performance.Optimized for 385 nm and 405 nm dental 3D printers, this biocompatible resin is engineered for the efficient production of custom dental impression trays. Its highly reactive, low-viscosity formula supports reliable resin flow, streamlined washing, and rapid curing while maintaining excellent detail reproduction. With layer heights up to 0.30 mm (0.012 in), dental laboratories can achieve print speeds up to twice as fast as conventional workflows without compromising tray quality.
Biocompatible dental resin supports the fabrication of custom individual impression trays.
High reactivity enables faster, efficient printing for busy dental laboratories.
Low viscosity improves resin handling, cleaning, and post-processing efficiency.
Smooth, homogeneous tray surfaces reduce the time required for manual finishing.
Product Description
Layer heights up to 0.30 mm (0.012 in) support fast production while preserving reliable mechanical performance.Optimized for 385 nm and 405 nm dental 3D printers, this biocompatible resin is engineered for the efficient production of custom dental impression trays. Its highly reactive, low-viscosity formula supports reliable resin flow, streamlined washing, and rapid curing while maintaining excellent detail reproduction. With layer heights up to 0.30 mm (0.012 in), dental laboratories can achieve print speeds up to twice as fast as conventional workflows without compromising tray quality.
Finished dental impression trays feature a smooth, homogeneous surface that helps reduce manual finishing and supports a more efficient laboratory workflow. Available in green, blue, and red, this 1 kg (2.20 lb) dental tray resin delivers the strength and rigidity needed for dependable clinical use while helping labs lower turnaround times and material waste.
Material Data:
Compatible: 385 nm and 405 nm dental 3D printing systems
Flexural modulus: At least 2,100 MPa
Flexural strength: Greater than 90 MPa
Bottle size: 1 kg (2.20 lb / 35.27 oz)
Viscosity: Approximately: 1.2 Pa·s

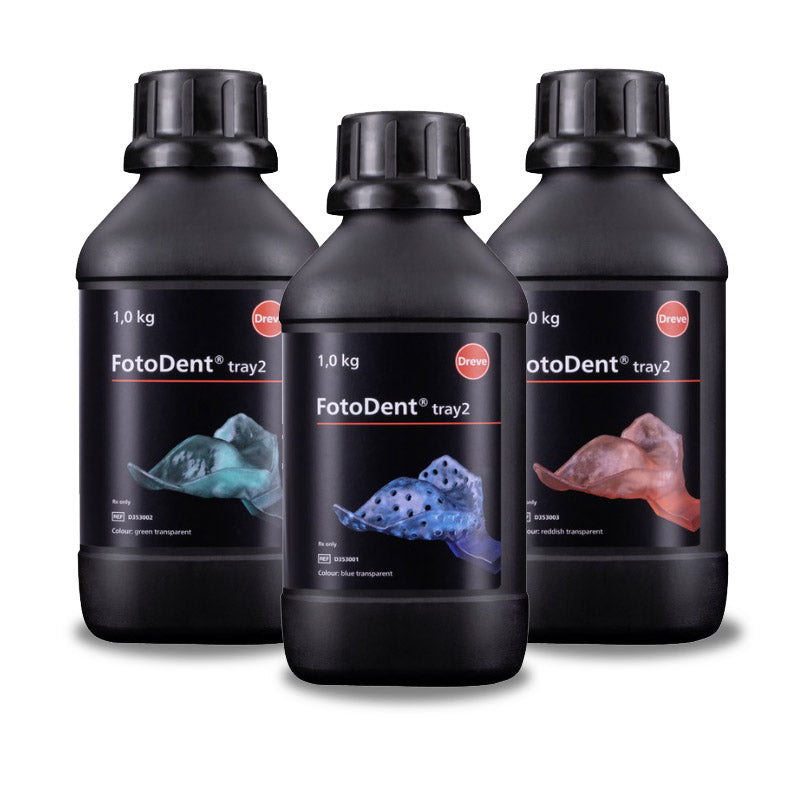

Available Colors: Green, blue, and red
Green print time and material consumption:
Print speed: ~ 51 mm/h (2.01 in/h)
Print time per platform: ~ 82 minutes
Print time per part: ~ 5.1 minutes
Parts per vertical platform: ~ 16
Material consumption per part: ~ 15 g
Absolute part height: ~ 70 mm (2.76 in)
Estimated cost per part: ~ $2.84 USD
Print speed: ~ 51 mm/h (2.01 in/h)
Print time per platform: ~ 82 minutes
Print time per part: ~ 5.1 minutes
Parts per vertical platform: ~ 16
Material consumption per part: ~ 15 g
Absolute part height: ~ 70 mm (2.76 in)
Estimated cost per part: ~ $2.84 USD
Blue print time and material consumption:
Print speed: ~ 46.4 mm/h (1.83 in/h)
Print time per platform: ~ 90 minutes
Print time per part: ~ 5.6 minutes
Parts per vertical platform: ~16
Material consumption per part: ~ 15 g
Absolute part height: ~ 70 mm (2.76 in)
Estimated cost per part: ~ $2.84 USD
Print speed: ~ 46.4 mm/h (1.83 in/h)
Print time per platform: ~ 90 minutes
Print time per part: ~ 5.6 minutes
Parts per vertical platform: ~16
Material consumption per part: ~ 15 g
Absolute part height: ~ 70 mm (2.76 in)
Estimated cost per part: ~ $2.84 USD
Red print time and material consumption:
Print speed: 60 mm/h (2.36 in/h)
Print time per platform: 70 minutes
Print time per part: 14 minutes
Parts per vertical platform: 5
Material consumption per part: 15 g
Absolute part height: 70 mm (2.76 in)
Estimated cost per part: ~ $2.84 USD
Print speed: 60 mm/h (2.36 in/h)
Print time per platform: 70 minutes
Print time per part: 14 minutes
Parts per vertical platform: 5
Material consumption per part: 15 g
Absolute part height: 70 mm (2.76 in)
Estimated cost per part: ~ $2.84 USD
Material Safety Data Sheet (MSDS)
CLICK HERE
