Product Information
Features and Benefits
Precision Dental Micro-Welding: The DADO’s 1064 nm Nd:YAG laser and adjustable 0.20–1.50 mm (0.008–0.059 in) spot diameter support controlled, detailed welding work for dental laboratory applications.
Complete Argon Shielding Package: The included 50 SCF tank of 99.996% pure Argon 4.6 helps shield the molten weld pool from oxygen, nitrogen, and hydrogen, reducing oxidation, porosity, and weld spatter for cleaner, stronger results.
Controlled Gas Flow and Clear Monitoring: The AGR 2.2 LZR low-pressure regulator provides adjustable 1–5 L/min flow with dual gauges for tank and line pressure, helping maintain consistent shielding gas delivery during welding.
Smart, User-Friendly DADO Operation: Mobile-app control, real-time vocal error alerts, a color-changing chamber LED status indicator, and a 10× microscope help the operator set parameters, monitor status, and position work accurately. Cooling-System Protection Included: Type II deionized water helps prevent mineral deposits and static-charge buildup in the liquid-cooling circuit, supporting reliable laser performance and helping extend equipment life.
Precision Dental Micro-Welding: The DADO’s 1064 nm Nd:YAG laser and adjustable 0.20–1.50 mm (0.008–0.059 in) spot diameter support controlled, detailed welding work for dental laboratory applications.
Complete Argon Shielding Package: The included 50 SCF tank of 99.996% pure Argon 4.6 helps shield the molten weld pool from oxygen, nitrogen, and hydrogen, reducing oxidation, porosity, and weld spatter for cleaner, stronger results.
Controlled Gas Flow and Clear Monitoring: The AGR 2.2 LZR low-pressure regulator provides adjustable 1–5 L/min flow with dual gauges for tank and line pressure, helping maintain consistent shielding gas delivery during welding.
Smart, User-Friendly DADO Operation: Mobile-app control, real-time vocal error alerts, a color-changing chamber LED status indicator, and a 10× microscope help the operator set parameters, monitor status, and position work accurately. Cooling-System Protection Included: Type II deionized water helps prevent mineral deposits and static-charge buildup in the liquid-cooling circuit, supporting reliable laser performance and helping extend equipment life.
Product Description

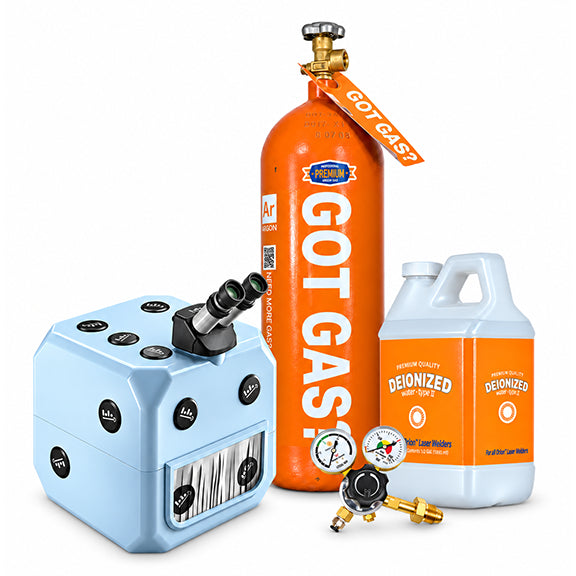

Equip your dental laboratory for precise, argon-shielded laser welding with the DADO Laser Welder Bundle. At its center is the compact DADO Nd:YAG 1064 nm dental laser welder, which combines an adjustable 0.20–1.50 mm (0.008–0.059 in) laser spot, liquid cooling, 10× microscope, mobile-app controls, vocal alerts, and an in-chamber LED status indicator. This professional dental laser welding system is designed to make detailed welding setup, parameter control, and visual positioning more efficient.
Equip your dental laboratory for precise, argon-shielded laser welding with the DADO Laser Welder Bundle. At its center is the compact DADO Nd:YAG 1064 nm dental laser welder, which combines an adjustable 0.20–1.50 mm (0.008–0.059 in) laser spot, liquid cooling, 10× microscope, mobile-app controls, vocal alerts, and an in-chamber LED status indicator. This professional dental laser welding system is designed to make detailed welding setup, parameter control, and visual positioning more efficient.
The bundle brings together a 50 SCF supply of 99.996% pure Argon 4.6, the AGR 2.2 LZR precision argon regulator, and Type II deionized cooling water. Argon shielding helps protect the molten weld area from atmospheric contaminants for a cleaner weld appearance and more consistent penetration, while the regulator supports adjustable flow and pressure monitoring. The included Type II DI water supports clean coolant circulation, helping the liquid-cooled DADO laser welder maintain dependable performance.
Technical Specifications
Main Bundle Components: DADO Laser Welder, 50 SCF Argon Gas Tank, AGR 2.2 LZR Argon Gas Regulator, and Type II Deionized Water
Laser Source: Nd:YAG, 1064 nm
Impulse Duration: 0.1–6 ms Laser Spot Diameter: 0.20–1.50 mm (0.008–0.059 in) DADO Laser Dimensions: 342.9 × 342.9 × 342.9 mm (13.5 × 13.5 × 13.5 in)
DADO Laser Weight: 14.97 kg (33 lb)
Cooling Method: Liquid cooling
Microscope Magnification: 10×
Mobile Control: WApp Dado mobile application
Electrical Input: 110/230 VAC, 50/60 Hz, single phase
Average Laser Power: 150 W
Maximum Power: 1.8 kW
Electrical Protection: T16A
Operating Environment: 16.7–35 °C (62–95 °F), up to 65% relative humidity, non-condensing
Noise Level: Less than 70 dB(A)
Argon Compatibility: Yes
Argon Gas Purity: 99.996% pure argon, Argon 4.6
Argon Tank Capacity: 50 SCF (1.416 m³)
Argon Tank Dimensions: 685.8 mm height × 177.8 mm diameter (27 in height × 7 in diameter)
Argon Tank Weight: 19.96 kg (44 lb)
Recommended Argon Pressure: Approximately 10 PSI
Argon Regulator Model: AGR 2.2 LZR laser configuration
Regulator Type: Low-pressure precision regulator for argon
Regulator Flow Range: 1–5 L/min with unlimited incremental adjustment
Regulator Gauges: Dual gauges for tank pressure and line pressure
Laser Regulator Connector: 8 mm (0.315 in) quick tubing connector
Deionized Water Type: Premium Type II deionized water
Deionized Water Volume: Approximately 1,715 mL (58 fl oz) per bottle
Deionized Water Function: Laser-welder coolant and maintenance fluid formulated to remove ions and dissolved mineral salts
Recommended Water Service: Full cooling-water replacement once per year
Argon Tank Shipping: UPS Ground to continental U.S. states only; Alaska and Hawaii excluded
Main Bundle Components: DADO Laser Welder, 50 SCF Argon Gas Tank, AGR 2.2 LZR Argon Gas Regulator, and Type II Deionized Water
Laser Source: Nd:YAG, 1064 nm
Impulse Duration: 0.1–6 ms Laser Spot Diameter: 0.20–1.50 mm (0.008–0.059 in) DADO Laser Dimensions: 342.9 × 342.9 × 342.9 mm (13.5 × 13.5 × 13.5 in)
DADO Laser Weight: 14.97 kg (33 lb)
Cooling Method: Liquid cooling
Microscope Magnification: 10×
Mobile Control: WApp Dado mobile application
Electrical Input: 110/230 VAC, 50/60 Hz, single phase
Average Laser Power: 150 W
Maximum Power: 1.8 kW
Electrical Protection: T16A
Operating Environment: 16.7–35 °C (62–95 °F), up to 65% relative humidity, non-condensing
Noise Level: Less than 70 dB(A)
Argon Compatibility: Yes
Argon Gas Purity: 99.996% pure argon, Argon 4.6
Argon Tank Capacity: 50 SCF (1.416 m³)
Argon Tank Dimensions: 685.8 mm height × 177.8 mm diameter (27 in height × 7 in diameter)
Argon Tank Weight: 19.96 kg (44 lb)
Recommended Argon Pressure: Approximately 10 PSI
Argon Regulator Model: AGR 2.2 LZR laser configuration
Regulator Type: Low-pressure precision regulator for argon
Regulator Flow Range: 1–5 L/min with unlimited incremental adjustment
Regulator Gauges: Dual gauges for tank pressure and line pressure
Laser Regulator Connector: 8 mm (0.315 in) quick tubing connector
Deionized Water Type: Premium Type II deionized water
Deionized Water Volume: Approximately 1,715 mL (58 fl oz) per bottle
Deionized Water Function: Laser-welder coolant and maintenance fluid formulated to remove ions and dissolved mineral salts
Recommended Water Service: Full cooling-water replacement once per year
Argon Tank Shipping: UPS Ground to continental U.S. states only; Alaska and Hawaii excluded
