Product Information
Reliable aligner separation for flexible daily workflows
Thermoformed clear aligners often adhere tightly to the model. The Separator – Standard enables safe, controlled and non-destructive removal — designed for reliable daily use in labs and clinics.
Non-Destructive Removal
Aligners are separated safely without damaging the model or material.
Flexible Operation
Compatible with various thermoforming setups and workflows.
Controlled Separation
Manual vacuum control enables precise handling.
Daily Reliability
Designed for consistent results in everyday production.
Product Overview

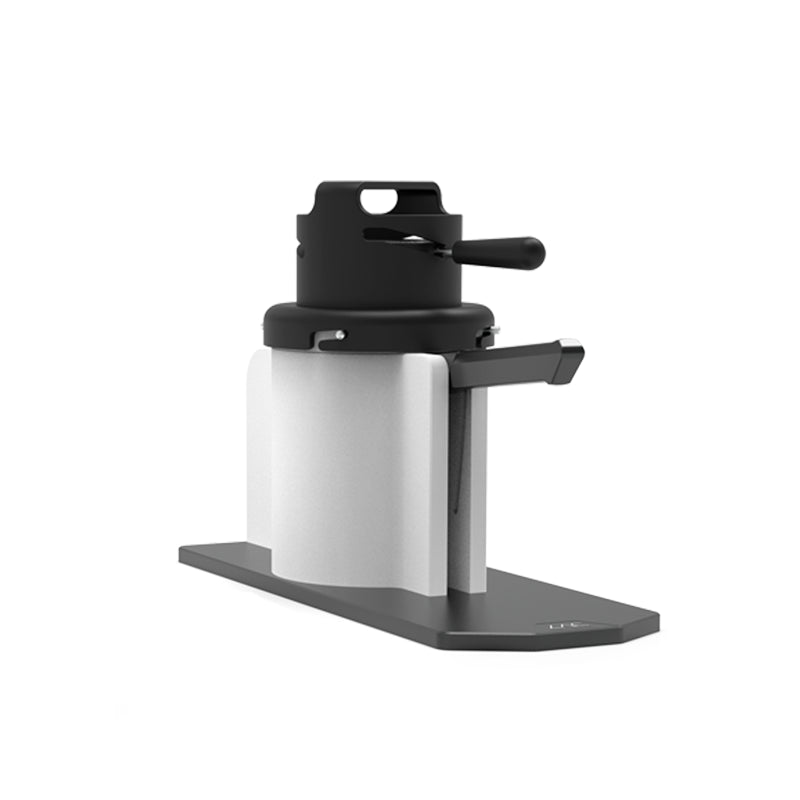

The Separator – Standard is a manual separation device designed to remove thermoformed clear aligners safely and efficiently from the model.
Using controlled vacuum and mechanical separation, the system allows precise handling during the separation process. This makes it ideal for flexible workflows, smaller batch sizes, and environments where adaptability is required.
The Separator – Standard integrates seamlessly into existing aligner production setups without the need for automation or workflow modifications.
Feature Highlights
Vacuum Separation
Manual vacuum control
Precise handling during separation
Reduced risk of material damage
Safe Model Handling
Non-destructive separation process
Protects printed or milled models
Reliable results with repeated use
Flexible Compatibility
Works with common thermoforming devices
Adaptable to different aligner geometries
No workflow restructuring required
Simple & Robust Design
Compact mechanical system
Minimal maintenance
Designed for daily lab operation
Technical Specifications
Key technical parameters for system integration and operation.
ALIGNER SEPARATION
Process time (per aligner separation): Approximately 20 to 35 seconds
Aligner foil diameter: Ø120–125 mm | Ø4.72–4.92 inches
Aligner foil height: 0.25–1.0 mm | 0.01–0.04 inches
GENERAL
W / L / H: 145 × 385 × 215 mm | 5.71 × 15.16 × 8.46 inches
Weight: 4 kg | 8.82 lb
STEP 1 Place the tooth model onto the vacuum disc beneath the separation threads and secure it in position.
STEP 2 Insert the vacuum disc into the thermoforming unit using the adapter ring suitable for your device.
STEP 3 Thermoforming: Insert the aligner foil into the thermoforming unit and thermoform the tooth model.
STEP 4 After thermoforming, place the thermoformed tooth model with the vacuum disc into the separator.
STEP 5 Place the vacuum lid onto the separator and secure it with a rotary motion.
STEP 6 Use the lever to generate a vacuum, which is applied as counterpressure.
STEP 7 Pull the lever towards you and downward to separate the tooth model from the aligner foil.
STEP 8 Unlock and remove the vacuum lid. The separated aligner is now ready for further processing.
