Product Information
Engineered for the LAC.
Essential for cutting quality and a clean working environment.
To ensure stable cutting results and a safe production environment, the LAC Suction Unit is specifically designed to match the LAC Laser Aligner Cutter. Fully integrated, automatically controlled and optimized for continuous operation.
Clean Environment
Efficient extraction of fumes and particles during laser cutting.
Stable Cutting Quality
Optimized airflow ensures consistent cutting results.
Fully Integrated Control
Automatically controlled via the LAC system.
Industrial Filtration
Multi-stage filter system for reliable daily operation.
Product Overview

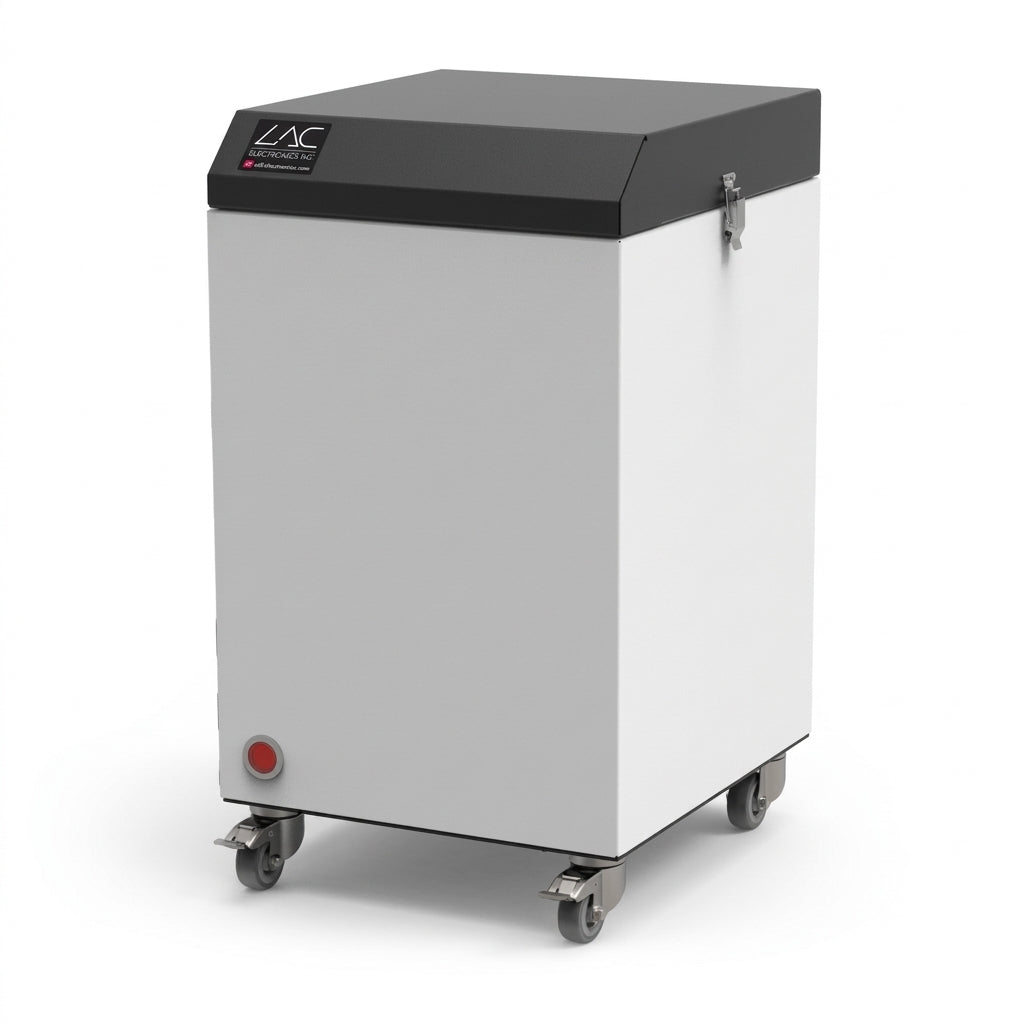

The LAC Suction Unit ensures optimal airflow during laser cutting — a key requirement for clean edges and stable cutting quality.
Equipped with a multi-stage filtration system, including a prefilter (G4), HEPA filter (H13), and activated carbon filter, the unit efficiently captures particles and emissions generated during the cutting process.
Designed specifically for use with the LAC Laser Aligner Cutter, the suction unit is fully integrated and automatically activated as soon as cutting begins — ensuring seamless and efficient operation without manual intervention.
Optimized Airflow
• Designed to match the LAC cutting chamber
• Ensures stable cutting conditions
• Supports consistent edge quality
Multi-Stage Filtration
• Prefilter (G4)
• HEPA filter (H13)
• Activated carbon filter
Integrated System Control
• Automatically activated by the LAC
• No separate operation required
• Seamless workflow integration
Built for Continuous Operation
• Industrial-grade components
• Designed for daily production use
• Reliable performance over long cycles
Technical Specifications
Key technical parameters for system integration and installation planning.
SUCTION UNIT
Connection diameter: ø50 mm
Air flow rate (unimpeded): 240 m³/h
Filters: Prefilter (G4) | HEPA filter (H13) | Activated carbon filter
POWER
Voltage: Single-phase 110-230 V, 50/60 Hz
Power consumption: 700 W
GENERAL
W / L / H: 390 × 430 × 630 mm | 1' 3.4" × 1' 4.9" × 2' 0.8"
Weight: 35 kg | 77.16 lb
Noise level: 56 dB(A)
